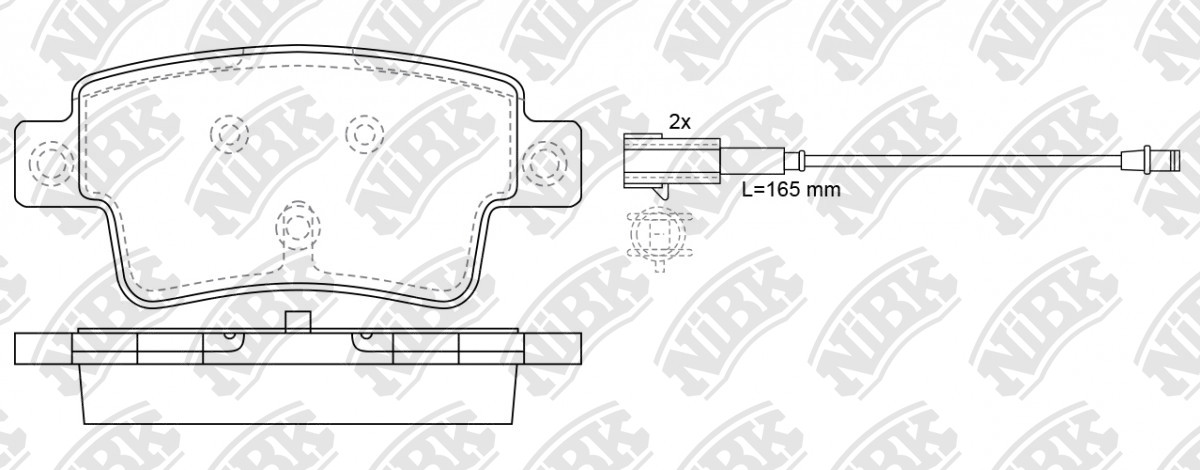

BRAKE PADS » PN0481W
Specification
Pcs In Set
4
Wire-Sensor
2
Length-1
101.8
Width-1
47.1
Thickness-1
17.3
Variation
Cross Reference
BENDIX AUS
DB2220
CITROEN
1611141080
CITROEN
4253.71
CITROEN
4254.32
FIAT
7 736 546 4
FIAT
7 736 5886
FIAT
71773144
FIAT
77363959
FMSI
D1537
FMSI
D2064-8746
GM
93169177
GM
93189823
OPEL
16 05 230
OPEL
16 05 356
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 10.08~08.13 | 1600 | 1.6 THP 16v 150 | UA | RN1854V | PN0398W | RN1857H | PN0481 | |
| 07.08~08.13 | 1600 | 1.6 THP 16v 150 | UD | RN1854V | PN0398W | RN1857H | PN0481 | |
| 09.10~08.13 | 1600 | DV6C | UA | RN1151V | PN0471 | RN1857H | PN0481 | |
| 07.09~08.13 | 2000 | DW10CTED4 | UD | RN1854V | PN0348W | RN1857H | PN0481 | |
| 10.06~08.10 | 2000 | EW10A | UA | RN1854V | PN0398W | RN1857H | PN0481 | |
| 10.06~08.13 | 2000 | EW10A | UD | RN1854V | PN0398W | RN1857H | PN0481 |
| 03.12~ | 3/5DR HB | RN1592V | PN0187WPN0658W | DN1563 | PN0481WFN0682FN0624 | |||
| 12.13~ | 900 | 199 B6.000 | 3/5DR HB | RN1592V | PN0187WPN0658W | DN1563 | FN0624PN0481WFN0682 | |
| 03.12~ | 900 | 312 A2.000 | 3/5DR HB | RN1592V | PN0187WPN0658W | DN1563 | PN0481WFN0682FN0624 | |
| 03.12~ | 1200 | 169 A4.000 | 3/5DR HB | RN1592V | PN0658WPN0187W | DN1563 | FN0624PN0481WFN0682 | |
| 10.05~03.12 | 1300 | 199 A2.000 | 199 | PN0187W | PN0481FN0624 | |||
| 03.12~ | 1300 | 199 B4.000 | 3/5DR HB | RN1592V | PN0658WPN0187W | DN1563 | FN0624PN0481WFN0682 | |
| 06.07~ | 1400 | 198 A4.000 | 199 | PN0187W | PN0481 | |||
| 10.05~ | 1900 | 939 A1.000 | 199 | PN0187W | PN0481 |
| 10.09~12.11 | 1400 | 350 A1.000 | 19925L351870 | RN1592V | PN0658W | DN1563 | FN0624PN0481W | |
| 10.09~ | 1600 | 199 | PN0187W | PN0481W |
