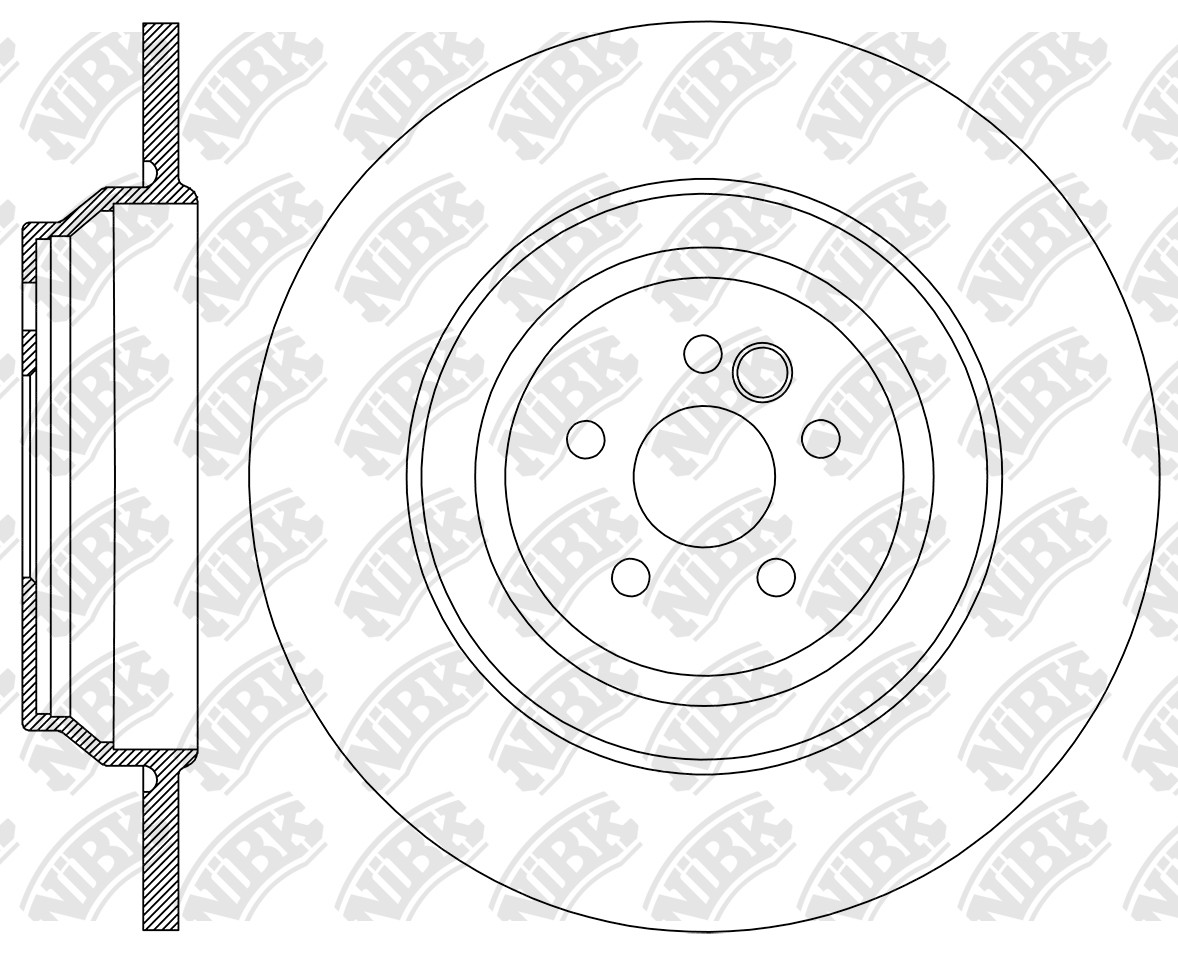

ROTOR DISC » RN2456

RN2456

Specification

Type
Solid
Outter Ø
300
Num. of holes
5
Hole Ø:
15.3
Disc Thickness (Max)
11
Disc Thickness (Min)
9.3
Height
58.5
Centering Diameter
67
Pitch Circle Ø
112
Drum Ø:
180.1
Front/Rear
Rear
Structure Material
G3000

Cross Reference

BENDIX
562257B
MERCEDES-BENZ
2204230112
MERCEDES-BENZ
A 220 423 01 12
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

MERCEDES-BENZ   »   CL 500

09.99~09.06 5000 M 113.960 C215 RN1510VRN1135DSET PN0196W RN2456 PN0200WPN0344W FN0777

MERCEDES-BENZ   »   S 280

10.98~08.05 2800 M 112.922 W220 RN1510V PN0196W RN2456 PN0200WPN0344W FN0777

MERCEDES-BENZ   »   S 320

08.99~09.02 3200 OM 613.960 W220 RN1135DSET PN0196W RN2456 PN0200W FN0777
09.02~08.05 3200 OM 648.960 W220 RN1135DSET PN0196W RN2456 PN0344W FN0777

MERCEDES-BENZ   »   S 320L

10.98~08.02 3200 M 112.944 W220 RN1510V PN0196W RN2456 PN0200W FN0777

MERCEDES-BENZ   »   S 350

10.02~10.05 3700 M 112.972 V220 RN1510V PN0196W RN2456 PN0344W FN0777
09.02~08.05 3700 M 112.975 W220 RN1510V PN0196W RN2456 PN0344W FN0777

MERCEDES-BENZ   »   S 350L

10.02~10.05 3700 M 112.972 W220 RN1510V PN0196W RN2456 PN0344W FN0777

MERCEDES-BENZ   »   S 400

06.00~08.05 4000 OM 628.960 W220 RN1135DSET PN0196W RN2456 PN0344WPN0200W FN0777

MERCEDES-BENZ   »   S 430

10.98~08.05 4300 M 113.941 W220 RN1135DSETRN1510V PN0196W RN2456 PN0344WPN0200W FN0777

MERCEDES-BENZ   »   S 500

10.98~08.05 5000 M 113.960 W220 RN1135DSETRN1510V PN0196W RN2456 PN0344WPN0200W FN0777
