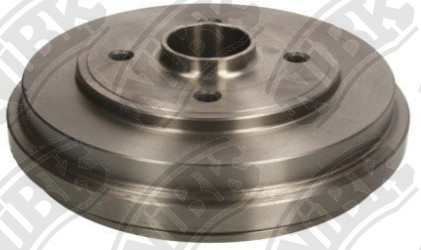

DRUM BRAKE » DN1569H
Specification
Outter Ø
232
Num. of holes
4
Hole Ø
M12x1.5
Centering Diameter
47-52.1
Height
73
Pitch Circle Ø
100
Drum Ø
200
Structure Material
G3000
Notes
w/wheel bearing
Variation
Cross Reference
GM
9214294
OPEL
47 07 272
SUZUKI
43511-85E50
SUZUKI
43511-85E50-000
years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
---|
09.00~03.08 | 1000 | Z10XE | RN1131 | PN9807PN9805 | DN1568DN1569DN1567 | FN0762FN2386 | ||
09.03~03.08 | 1000 | Z10XE | PN9807 | DN1568DN1569DN1567 | FN0762 | |||
09.00~08.04 | 1200 | Z12XE | RN1131 | PN9807PN9805 | DN1568DN1569DN1567 | FN2386FN0762 | ||
07.04~03.08 | 1200 | Z12XEP | PN9807 | DN1568DN1569DN1567 | FN0762 | |||
09.03~03.08 | 1300 | Z13DT | PN9807 | DN1569DN1567DN1568 | FN0762 |
