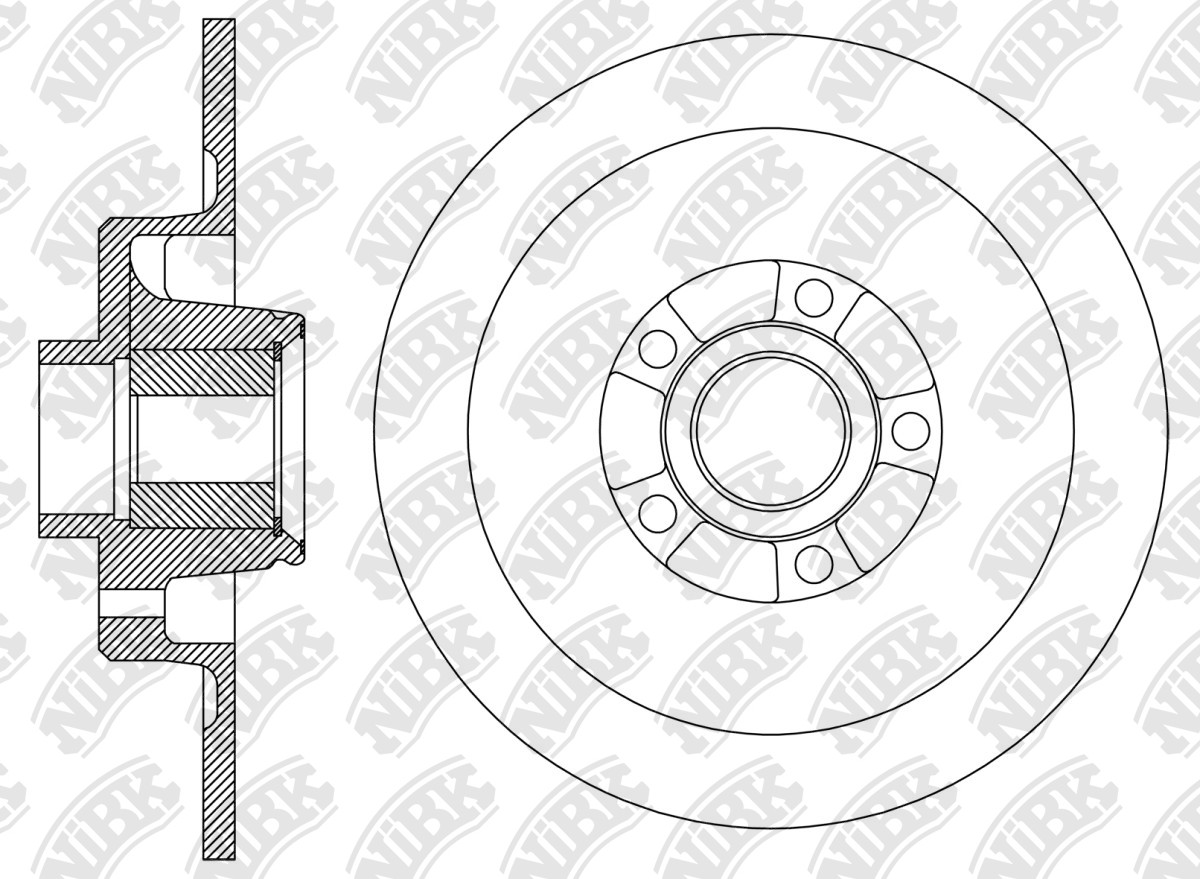

ROTOR DISC » RN2286H

Specification

Type

Solid

Outter Ø

290

Num. of holes

5

Hole Ø:

M12x1.5

Disc Thickness (Max)

11

Disc Thickness (Min)

9.5

Height

90.2

Centering Diameter

52.3/61.9

Pitch Circle Ø

114.3

Front/Rear

Rear

Structure Material

G3000

Notes

w/Bearing, w/ABS Sensor Ring

Cross Reference

RENAULT

43 20 218 78R

RENAULT

43 20 249 62R

RENAULT

43 20 291 76R

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

RENAULT » Grand Scenic IV

09.16~	1200	H5F	R9	RN1882V	PN43003 PN2804	RN2286H	PN0019W PN0730
09.16~	1300	H5H450	R9A3	RN1882V	PN43003	RN2286H	PN0730
09.16~	1500	K9K 647	R9A3	RN1882V	PN2804 PN43003	RN2286H	PN0730
09.16~	1500	K9K 649	R9A3	RN1882V	PN43003 PN2804	RN2286H	PN0730
09.16~	1600	R9M	R9	RN1882V	PN43003 PN2804	RN2286H	PN0730
09.16~	1700	R9N	R9		PN2804 PN43003	RN2286H	PN0019W PN0730

RENAULT » Scenic IV

09.16~	1200	H5F	J9	RN1882V	PN2804 PN43003	RN2286H	PN0019W PN0730
09.16~	1300	H5H	J9		PN43003 PN2804	RN2286H	PN0730 PN0019W
09.16~	1500	K9K649	J9	RN1882V	PN43003 PN2804	RN2286H	PN0730 PN0019W
09.16~	1600	R9M	J9	RN1882V	PN43003 PN2804	RN2286H	PN0730
09.16~	1700	R9N	J9		PN2804 PN43003	RN2286H	PN0019W PN0730

RENAULT » Talisman

11.15~

1600

R9M 409

LP

RN2350V

PN43003 PN2804

RN2286H

PN0730
