ROTOR DISC » RN2204V

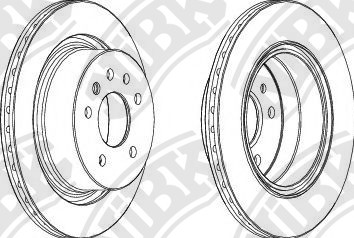

RN2204V

Specification

Type
Vented
Outter Ø
286
Num. of holes
5
Disc Thickness (Max)
20
Disc Thickness (Min)
18
Height
67
Centering Diameter
65.5
Pitch Circle Ø
110
Drum Ø:
160
Structure Material
G3000

Cross Reference

GM
09195052
GM
569100
GM
9195052
OPEL
569100
OPEL
9195052
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

CADILLAC (GM)   »   Catera

09.96~12.01 3000 L81 6VR69 RN2203V PN0022 RN1063RN2204V PN0024 FN0519

OPEL   »   Omega

03.01~07.03 3200 Y32SE 0VM35 RN2203V PN0022 RN2204V PN0024 FN0519
