NiBK Brakes:: Application Cross Reference and Image for NiBK : DRUM BRAKE : DN1561

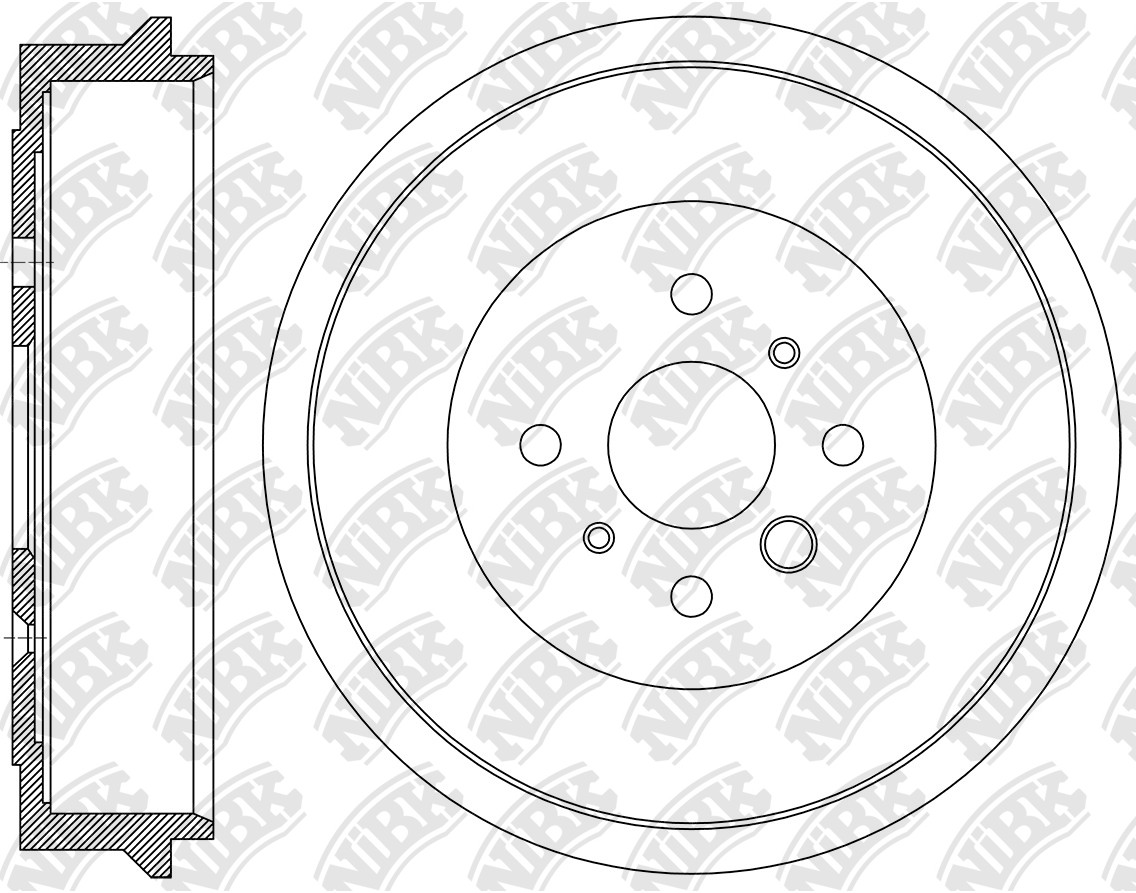

DRUM BRAKE » DN1561

Specification

Outter Ø

233

Num. of holes

4

Centering Diameter

55

Height

53.7

Pitch Circle Ø

100

Drum Ø

200

Structure Material

G3000

Hole Ø

13.2

Cross Reference

Peugeot / Citroen

4247 48

TOYOTA

42431-0H010

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

CITROEN » C1

06.05~09.14	1000	1.0 i 68	5-Hatchback	RN1214V	PN1841	DN1561	FN2386
06.05~09.14	1000	1KR-FE		RN1214V		DN1561	PN0468 FN2386
05.14~01.22	1000	384F	B4	RN1214V	PN1841	DN1561	FN2386
05.14~01.22	1200	EB2	B4	RN1214V	PN1841	DN1561	FN2386
08.05~09.14	1400	DV4TED		RN1214V		DN1561	PN0468 FN2386

PEUGEOT » 107

06.05~09.15	1000	1.0 i 68	5-Hatchback	RN1214V	PN1841	DN1561	FN2386
06.05~09.15	1000	1KR-FE	Hatchback	RN1214V	PN1841	DN1561	FN2386
06.05~09.15	1400	DV4TED	Hatchback	RN1214V	PN1841	DN1561	FN2386

TOYOTA » Aygo

02.05~01.14	1000	1KR-FE	KGB10	RN1214V	PN1841	DN1561	FN2386
06.14~	1000	1KR-FE	KGB40R	RN1214V	PN1841	DN1561	FN2386
05.14~05.18	1200	EB2-DT	PAB40	RN1214V	PN1841	DN1561	FN2386
08.05~01.09	1400	2WZ-TV	WNB10	RN1214V	PN1841	DN1561	FN2386
