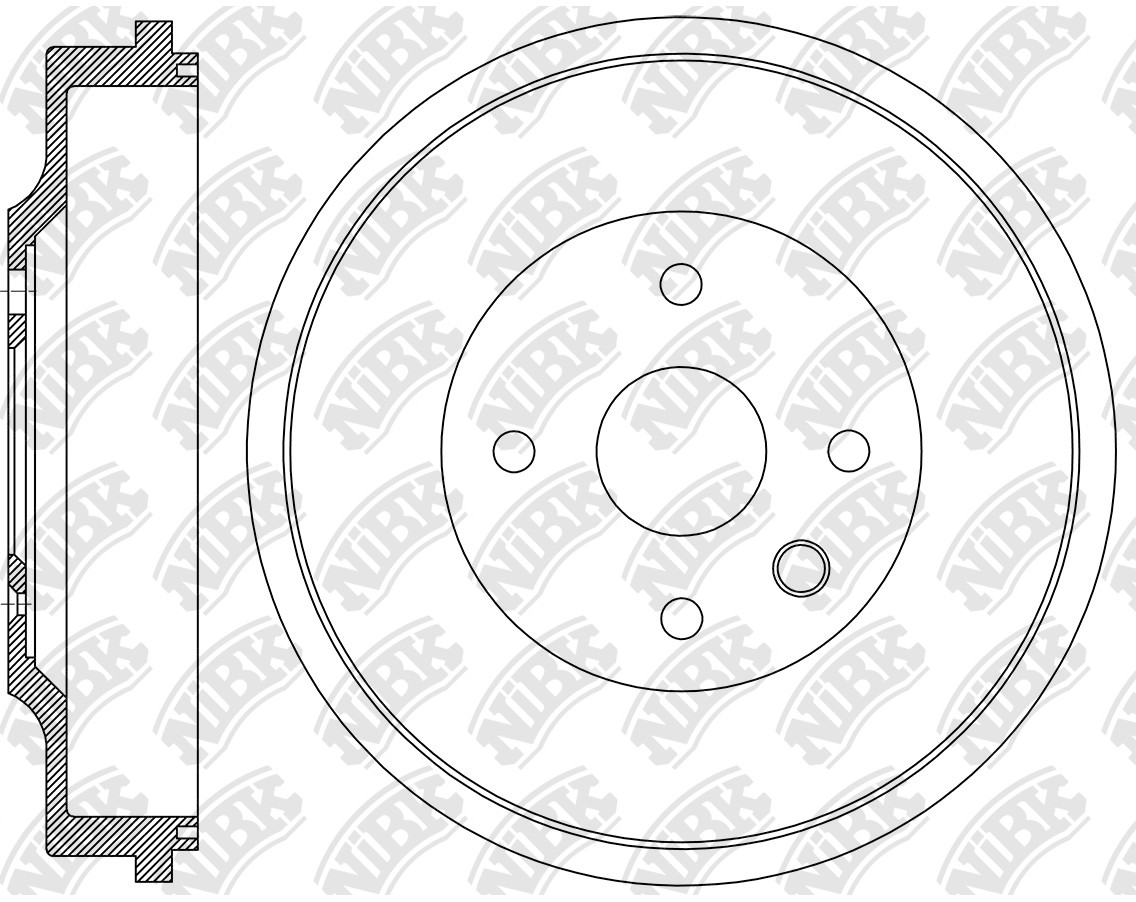

DRUM BRAKE » DN1538

Specification

Outter Ø
270
Num. of holes
4
Hole Ø
14
Centering Diameter
65
Height
58
Pitch Circle Ø
100
Drum Ø
230
Structure Material
G3000

Cross Reference

VAG
5U7 609 617
VAG
5U7 609 617 A
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
04.11~05.13 1600 CCRA 5U RN2189VRN2188V PN33010PN33017 DN1538 FN0554
10.09~ 1600 CFZA 5U__F4 RN2188V PN33010 DN1538 FN0554

Exemption from liability: the catalog data is advisory and can be used for reference only
