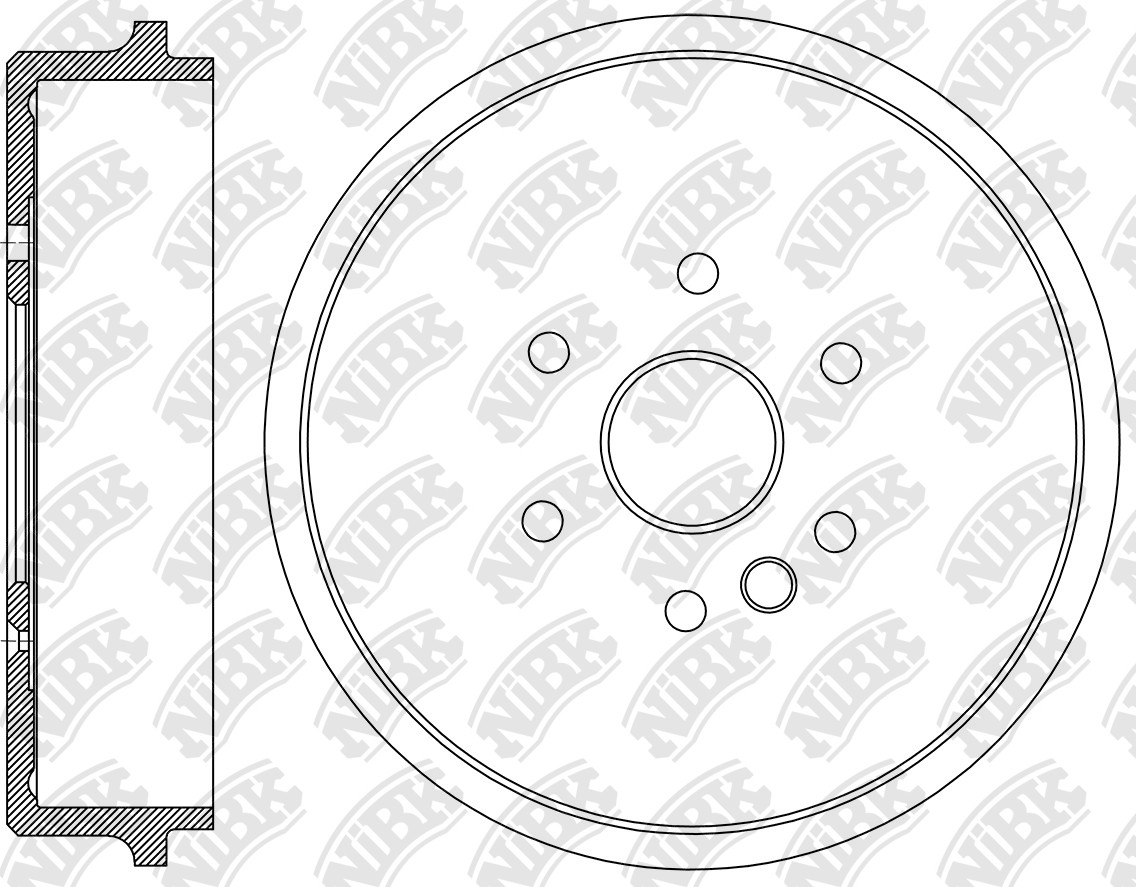

DRUM BRAKE » DN1423

DN1423

Specification

Outter Ø
294
Num. of holes
6
Hole Ø
12.5
Centering Diameter
96.6
Height
77.6
Pitch Circle Ø
139.7
Drum Ø
254
Structure Material
G3000

Cross Reference

GM
94226829
HONDA
8-26014-632-0
HONDA
8-94226-829-1
HONDA
8-97037-813-0
ISUZU
8-26014-632-0
ISUZU
8-94226-829-1
ISUZU
8-97037-813-0
OPEL
05 68 062
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

ISUZU   »   Fargo

10.88~08.95 2400 4FG1 NFR62DT RN1992V PN4083 DN1423 FN4431
10.88~08.95 2400 4FG1 NFS62DT RN1992V PN4083 DN1423 FN4431

ISUZU   »   Pickup TFR

04.98~05.02 2500 4JA1 TFR54 RN1326V PN4196 DN1423 FN4452
01.88~01.03 3100 4JG2 TFR69HDK RN1326V PN4196 DN1423 FN4452

ISUZU   »   Rodeo

12.95~07.98 2600 4ZE1 G58 PN4258 DN1423 PN4299FN4452
12.95~07.98 2600 4ZE1 Y58 PN4258 DN1423 PN4299FN4452

OPEL   »   Campo

07.94~12.01 2500 4JA1T TFR PN4196 DN1423 FN4452

OPEL (Vauxhall)   »   Brava

10.96~07.01 2500 25D TFR54 PN4196 DN1423 FN4452
10.96~07.01 2500 25D TFR56 PN4196 DN1423 FN4452
