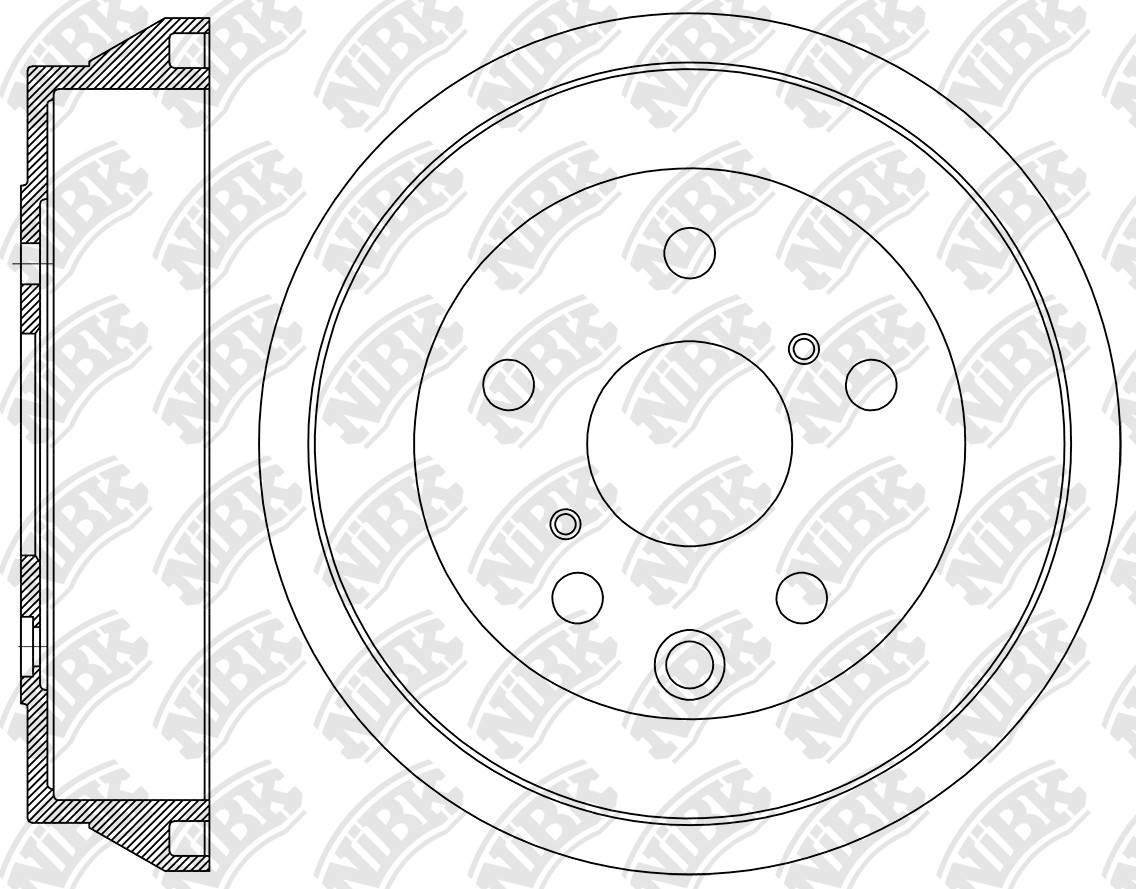

DRUM BRAKE » DN1397

Specification

Outter Ø
274
Num. of holes
5
Hole Ø
12.8
Centering Diameter
68
Height
60.2
Pitch Circle Ø
114.3
Drum Ø
228.6
Structure Material
G3000

Cross Reference

NISSAN
43206-1KL0A
NISSAN
43206-1TU0A
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
06.10~12.19 1500 HR15DE YF15 RN1426V PN2201 DN1397 FN1264
07.10~09.19 1500 K9K F15E RN1426V PN2201 RN1302DN1397 PN2466FN1264 FN0621
06.11~09.14 1600 HR16DE F15 GL JN1 RN1426V PN2201 RN1302DN1397 PN2466 FN0621
10.10~10.19 1600 HR16DE F15 GR JN1 RN1426V PN2201PN2474 RN1302DN1397 PN2466FN1264 FN0621
07.10~10.19 1600 HR16DE F15E RHD SJN RN1426V PN2201 DN1397RN1302 FN1264PN2466 FN0621
12.12~ 1800 MRA8DE TB17 RN1426V PN2201 DN1397 FN1264

Exemption from liability: the catalog data is advisory and can be used for reference only
