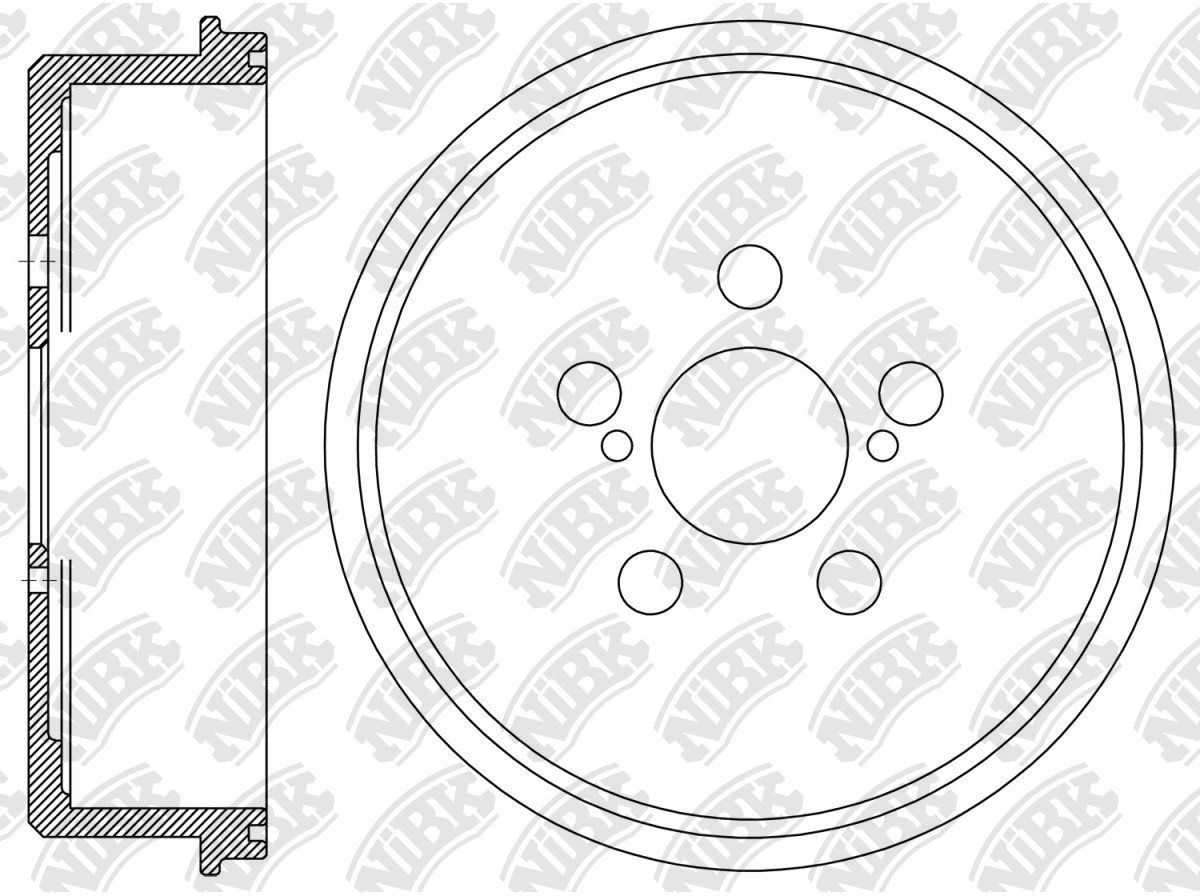

DRUM BRAKE » DN1258
Specification
Outter Ø
235
Num. of holes
5
Hole Ø
14.6
Centering Diameter
54
Height
65.5
Pitch Circle Ø
100
Drum Ø
200
Structure Material
G3000
Cross Reference
TOYOTA
42431-32020
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 08.88~07.90 | 1800 | 4S-Fi | SV22 | PN1077 | DN1258 | FN2285 | ||
| 08.86~08.90 | 2000 | 2C-T | CV20 | PN1077 | DN1258DN1259 | FN2285FN2232 | ||
| 08.86~08.98 | 2000 | 3S-FE | SV21L | PN1281 | DN1259DN1258RN1232 | PN1321FN2232FN2285 | FN0633 |
| 08.90~09.93 | 1800 | 4S-FE | ST180 | PN1077PN1281 | DN1248DN1258 | FN2285 | ||
| 08.90~09.93 | 1800 | 4S-FE | ST181 | PN1077PN1281 | DN1248DN1258 | FN2285 |
| 10.89~12.93 | 1600 | 4A-FE | AT180L | RN1459V | PN1281PN1077 | DN1248DN1258 | FN2285 | |
| 08.85~05.98 | 2000 | 3S-FE | ST162 | RN1010VRN1459V | PN1281PN1077 | RN1232DN1258 | FN2285PN1321 | |
| 10.87~08.89 | 2000 | 3S-FE | ST162C | RN1010V | PN1077 | DN1258 | FN2285 | |
| 09.89~09.93 | 2200 | 5S-FE | ST184L | RN1459V | PN1281 | DN1258RN1232 | FN2285PN1321 | FN0633 |
| 09.89~09.93 | 2200 | 5S-FE | ST184R | RN1459V | PN1281 | RN1232DN1258 | FN2285PN1321 | FN0633 |
