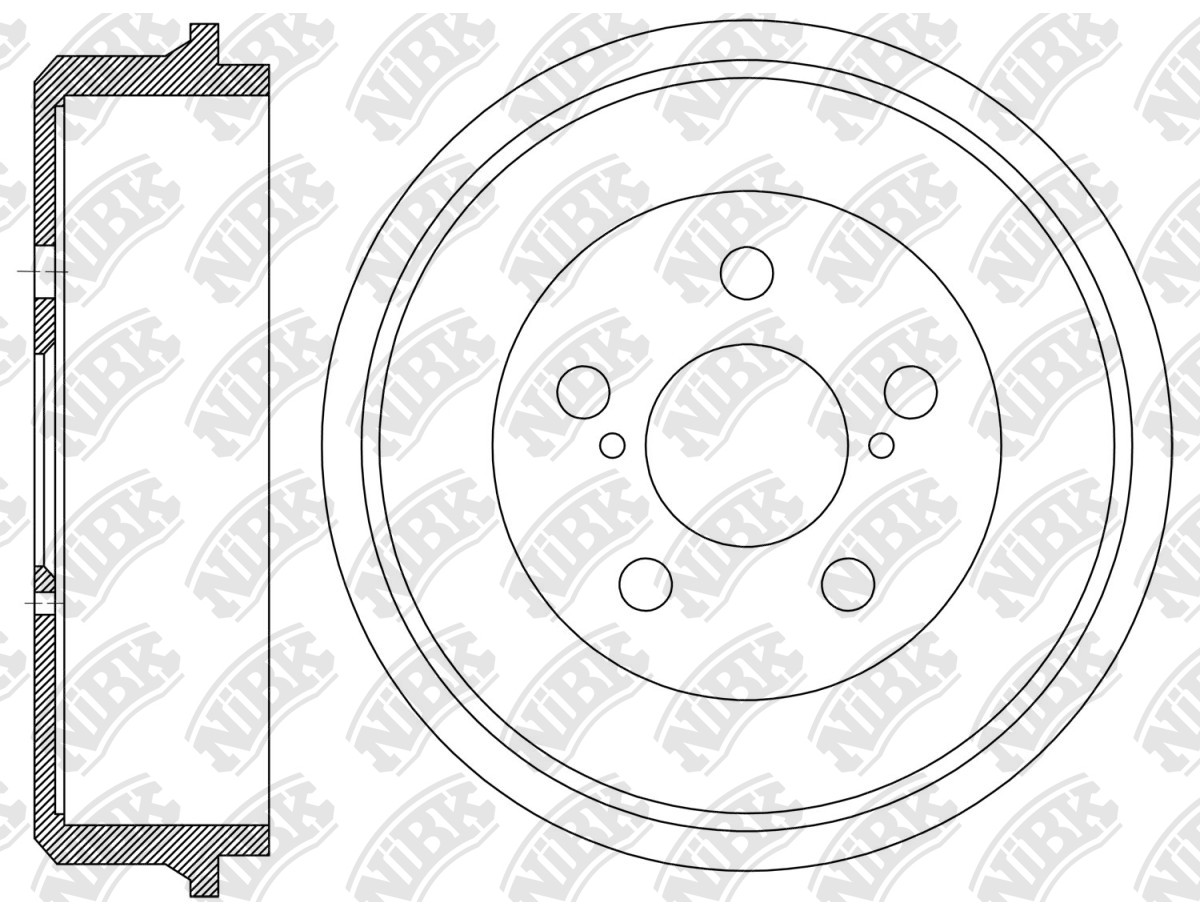

DRUM BRAKE » DN1238

Specification

Outter Ø
266.5
Num. of holes
5
Centering Diameter
55
Height
66.5
Pitch Circle Ø
100
Drum Ø
229
Structure Material
G3000
Hole Ø
14.5

Cross Reference

TOYOTA
42431-05020
TOYOTA
42431-20440
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.97~12.03 1600 3ZZ-FE ZZT220L RN1111VRN1384V PN1170PN1236PN1362 DN1238 FN2347PN1220 FN0633
01.97~07.03 1600 4A-FE AT220L RN1384VRN1111V PN1170PN1362 DN1238 PN1321PN1220FN2347
10.97~12.03 1800 1ZZ-FE ZZT221L RN1111VRN2384V PN1170PN1362PN1236 DN1238 FN2347PN1220 FN0633
07.00~01.03 1800 1ZZ-FE ZZT221R RN1111VRN1384V PN1236PN1170 DN1238 FN2347PN1321
06.03~01.08 1800 1ZZ-FE ZZT225 DN1238
10.97~05.03 1800 7A-FE AT221L RN1111V PN1170PN1362 DN1238 FN2347PN1220PN1321 FN0633
10.97~07.03 1800 7A-FE AT221R RN1111V PN1362PN1170 DN1238 PN1321PN1220FN2347
07.00~01.03 2000 1AZ-FSE AZT220L- RN2384V PN1236PN1362 DN1238 PN1220 FN0633
01.98~12.03 2000 1AZ-FSE AZT220R RN1111V PN1362PN1236 DN1238 PN1321PN1220 FN0633
01.97~12.03 2000 1CD-FTV CDT220L RN1111VRN1384V PN1170PN1362PN1236 DN1238 PN1220FN2347PN1321 FN0633
08.99~01.03 2000 1CD-FTV CDT220R RN2384VRN1111V PN1236PN1362PN1170 DN1238 PN1321PN1220FN2347 FN0633
10.97~12.03 2000 2C-T CT220L RN1111VRN1384V PN1362PN1170 DN1238 FN2347PN1220PN1321 FN0633
10.97~12.03 2000 2C-TE CT220 RN1111V PN1170 DN1238 FN2347
10.97~07.03 2000 3S-FE ST220L RN2384VRN1111VRN1384V PN1170PN1236PN1362 DN1238 PN1321FN2347PN1220
10.97~07.00 2000 3S-FE ST220R RN1111VRN1384V PN1362PN1170 DN1238 FN2347PN1220 FN0633
10.97~07.00 1600 4A-FE AT220L DN1238
10.97~07.00 2000 2CT CT220 DN1238

Exemption from liability: the catalog data is advisory and can be used for reference only
