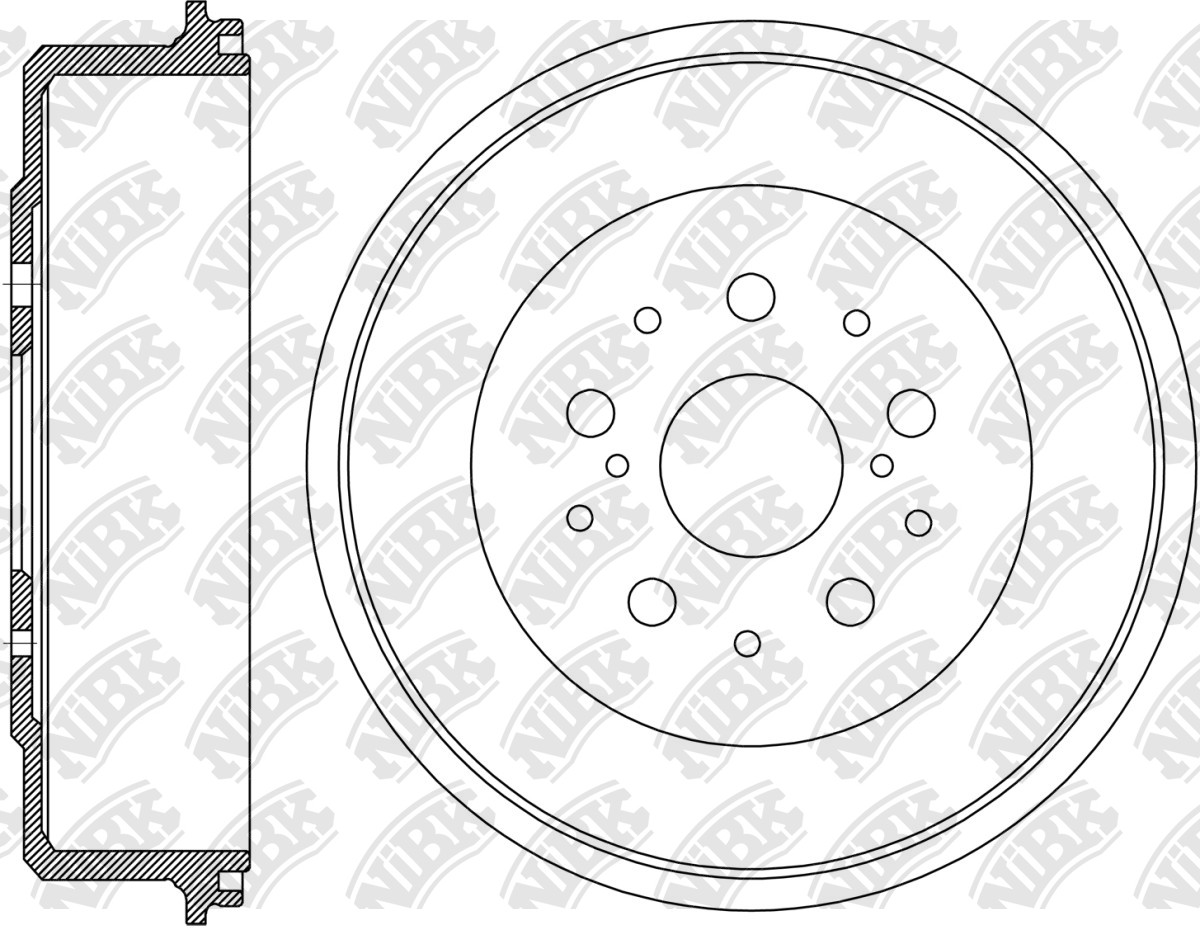

DRUM BRAKE » DN1203
Specification
Outter Ø
303
Num. of holes
5
Centering Diameter
62
Height
73.6
Pitch Circle Ø
114.3
Drum Ø
254
Structure Material
G3000
Hole Ø
14.4
Cross Reference
TOYOTA
42431-0K080
TOYOTA
42431-0K090
TOYOTA
42431-0K190
TOYOTA
42431-0K220
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.15~ | 2000 | 1TR-FE | TGN120L | RN1664V | PN1803 | DN1203 | FN2402 | |
| 02.05~12.15 | 2000 | 1TR-FE | TGN15L | RN1340VRN1627V | PN1802PN1801 | DN1203 | FN2335 | |
| 02.05~12.15 | 2000 | 1TR-FE | TGN15R | RN1942V | PN1831 | DN1203 | FN2335 | |
| 09.18~ | 2400 | 2GD-FTV | GUN120R | RN1664VRN2397V | PN1803 | DN1203 | FN2402 | |
| 05.15~ | 2400 | 2GD-FTV | GUN122L | RN1664VRN2397V | PN1803 | DN1203 | FN2402 | |
| 05.15~ | 2400 | 2GD-FTV | GUN122R | RN2397VRN1664V | PN1803 | DN1203 | FN2402 | |
| 01.15~ | 2500 | 2KD-FTV | KUN122L | RN1319VRN2397VRN1627V | PN1803 | DN1203 | FN2402FN2335 | |
| 01.15~05.19 | 2500 | 2KD-FTV | KUN122R | RN1319VRN2397VRN1627V | PN1803 | DN1203 | FN2335FN2402 | |
| 10.05~09.16 | 2500 | 2KD-FTV | KUN15L | RN1340VRN1627V | PN1802PN1831PN1801 | DN1203 | FN2335 | |
| 08.04~09.08 | 2500 | 2KD-FTV | KUN15R | RN1340VRN1942V | PN1831PN1801 | DN1203 | FN2335 | |
| 10.05~04.15 | 2700 | 2TR-FE | TGN11L | RN1627VRN1340V | PN1802PN1801 | DN1203 | FN2335 | |
| 06.15~ | 2700 | 2TR-FE | TGN121L | RN2397VRN1664V | PN1803 | DN1203 | FN2402 | |
| 08.08~07.11 | 2700 | 2TR-FE | TGN16 | RN1340VRN1627V | PN1801PN1802 | DN1203 | FN2335 | |
| 07.11~04.15 | 2700 | 2TR-FE | TGN16L | RN1627V | PN1802 | DN1203 | FN2335 | |
| 05.15~05.20 | 2800 | 1GD-FTV | GUN123R | RN2397VRN1664V | PN1803 | DN1203 | FN2402 | |
| 08.04~02.15 | 3000 | 1KD-FTV | KUN16R | RN1627VRN1340V | PN1801PN1802 | DN1203 | FN2335 | |
| 08.04~07.11 | 3000 | 5L-E | LAN15L | RN1942VRN1340V | PN1831 | DN1203 | FN2335 | |
| 08.04~07.11 | 4000 | 1GR-FE | GGN15R | RN1340V | PN1801 | DN1203 | FN2335 | |
| 05.15~05.18 | 4000 | 1GRFE | GGN120R | RN2397V | PN1803 | DN1203 | FN2402 |
