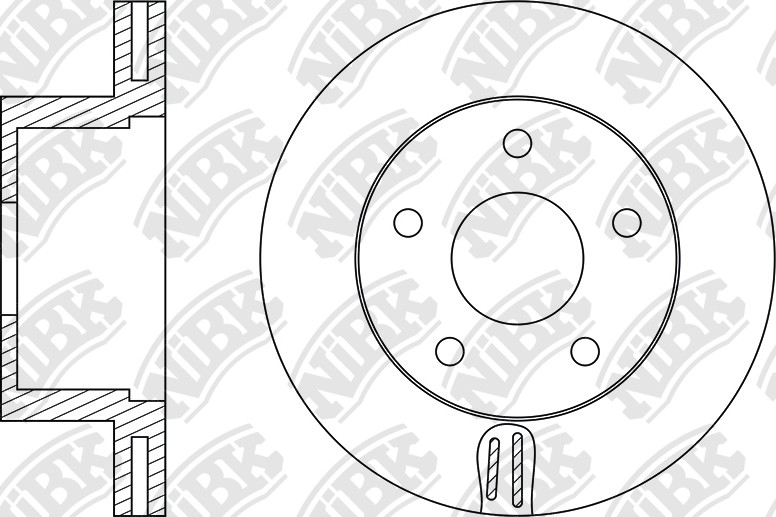

ROTOR DISC » RN1480V
Specification
Disc Thickness (Max)
35
Num. of holes
5
Height
102.6
Outter Ø
321
Type
Vented
Disc Thickness (Min)
33
Centering Diameter
126
Pitch Circle Ø
167
Drum Ø:
132
Structure Material
G3000
Cross Reference
TOYOTA
43512-36182
TOYOTA
4351236180
TOYOTA
4351236181
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 08.07~12.16 | 2700 | 2TR-FE | TRB50L | RN1480VRN1479V | PN1330PN1388 | DN1217 | FN2329BL2329 | FN2320 |
| 01.17~ | 2700 | 2TR-FE | TRB60 | RN1479VRN1480V | PN1388PN1330BL2329FN2329 | FN2329 | FN2298 | |
| 01.17~ | 2700 | 2TR-FE | TRB70 | RN1479VRN1480V | PN1330PN1388BL2329FN2329 | FN2329 | FN2298 | |
| 08.04~12.16 | 4000 | N04C | XZB50 | RN1480V | PN1330 | DN1217 | BL2329FN2329 | FN2320 |
| 08.04~12.16 | 4000 | N04C | XZB51 | RN1480V | PN1330 | DN1217 | FN2329BL2329 | FN2320 |
| 01.16~ | 4000 | N04C | XZB70 | RN1480V | PN1330 | DN1217 | FN2329BL2329 | FN2320 |
| 01.16~ | 4000 | N04C | XZB70L | RN1480V | PN1330 | DN1217 | BL2329FN2329 | FN2320 |
| 12.95~07.99 | 4100 | 15B-F | BB55 | RN1480V | PN1393 | PN1394 | ||
| 01.93~08.08 | 4200 | 1H-Z | HZB40 | RN1480VRN1479V | PN1388PN1330 | BL2329FN2329 | FN2298 | |
| 01.17~ | 4200 | 1H-Z | HZB60R | RN1479VRN1480V | BL2329PN1388PN1330FN2329 | DN1217 | FN2329 | FN2320 |
| 01.17~ | 4200 | 1H-Z | HZB70L | RN1479VRN1480V | PN1330FN2329BL2329PN1388 | DN1217 | FN2329 | FN2320 |
| 05.95~08.04 | 4200 | 1HD-FT | HDB51 | RN1480V | PN1330 | DN1217 | FN2329BL2329 | FN2320 |
