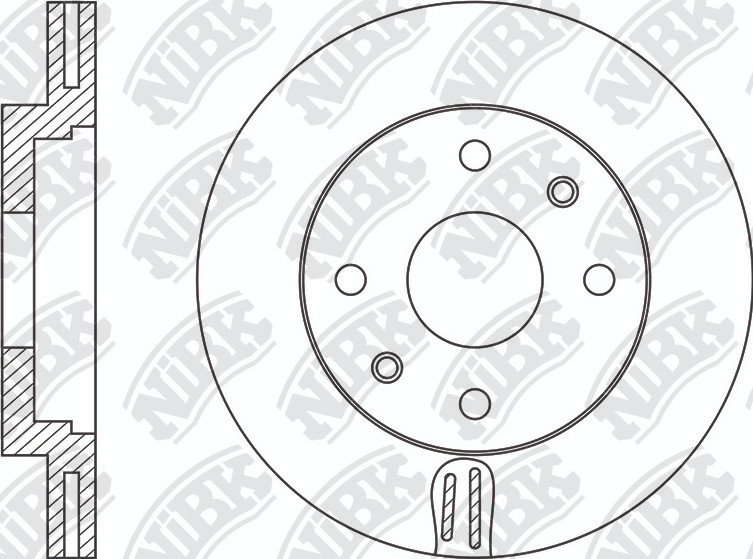

PERFORMANCE ROTOR DISC » RN1956DSET
Specification
Structure Material
GG20
Type 1:
Vented
Outter Ø
256
Num. of holes
4
Disc Thickness (Max)
22
Disc Thickness (Min)
20
Height
43
Centering Diameter
62.2
Pitch Circle Ø
100
Drum Ø:
125
Front/Rear
Front
Variation
Cross Reference
HYUNDAI
51712-C8000
HYUNDAI / KIA
51712-C8000
HYUNDAI / KIA
51712-T7400
KIA
51712-F9000
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.18~ | 1400 | G4LC | PH618 LHD | RN1956V | PN0537 | FN0609 | ||
| 01.18~ | 1400 | G4LC | PH618 LHD VTN | RN11002VRN1956V | PN0537 | RN11003DN1509 | PN0538FN0609 | |
| 01.18~ | 1400 | G4LC | PH618 RHD | RN1956V | PN0537 | RN11003DN1509 | PN0538FN0609 | |
| 01.18~ | 1400 | G4LC | PJ018 LHD SDN | RN1956V | PN0537 | DN1509 | FN0609 | |
| 01.18~ | 1600 | D4FB | PH618 LHD | RN1956V | PN0537 | DN1509 | FN0609 | |
| 12.17~ | 1600 | G4FG | PH618 LHD | RN1956V | PN0537 | RN11003 | PN0538 |
| 01.16~06.18 | 1000 | G3LC | HB EU | RN2072VRN1956V | PN0537 | DN1456RN11003 | PN0538FN0609 | |
| 06.18~03.20 | 1000 | G3LC | PC818 5DR HB EL | RN2072VRN1956V | PN0537 | RN11003DN1456 | FN0609PN0538 | |
| 03.20~ | 1000 | G3LC | PSV20 HB RHD | RN1956V | FN0609 | |||
| 11.14~06.18 | 1100 | D3FA | HB EU | RN1956VRN2072V | PN0537 | RN11003DN1456 | PN0538FN0609 | |
| 11.14~06.18 | 1200 | G4LA | HB EU | RN2072VRN1956V | PN0537 | DN1456RN11003 | FN0609PN0538 | |
| 11.14~06.18 | 1400 | D4FC | HB EU | RN2072VRN1956V | PN0537 | RN11003DN1456 | PN0538FN0609 | |
| 06.18~03.20 | 1400 | G4LC | GB | RN1956VRN2072V | PN0537 | RN11003DN1456 | PN0538FN0609 | |
| 11.14~06.18 | 1400 | G4LC | HB EU | RN1956VRN2072V | PN0537 | RN11003DN1456 | FN0609PN0538 |
| 02.20~ | 1400 | G4LC | H520 | RN1956V | PN0537 | RN11003DN1509 | PN0538FN0609 | |
| 02.20~ | 1600 | G4FG | H520 | RN1956V | PN0537 | DN1509RN11003 | FN0609PN0538 |
| 01.17~08.20 | 1400 | G4LC | H517 | RN1956V | PN0537 | DN1509RN11003 | PN0538FN0609 | |
| 01.17~08.20 | 1600 | G4FG | H517 | RN1956V | PN0537 | DN1509RN11003 | PN0538FN0609 |
| 08.20~ | 1200 | G4LF | PH820 HB RHD | RN1956V | PN0537 | DN1509 | FN0609 | |
| 01.20~ | 1400 | G4LC | PH820 HB RHD | RN1956V | PN0537 | DN1509 | FN0609 |
| 11.16~01.20 | 1200 | G4LA | PH817 HB RHD | RN1956V | PN0537 | DN1509 | FN0609 | |
| 11.16~01.20 | 1400 | G4LC | PH817 HB LHD | RN1956V | PN0537 | RN11003 | PN0538 | |
| 11.16~08.20 | 1400 | G4LC | PH817 HB RHD | RN1956V | PN0537 | RN11003DN1509 | PN0538FN0609 | |
| 01.17~ | 1400 | G4LC | PH917 HB LHD | RN1956V | PN0537 | DN1509 | FN0609 | |
| 01.17~ | 1400 | G4LC | PH917 SDN LHD | RN1956V | PN0537 | DN1509 | FN0609 | |
| 01.17~ | 1600 | G4FG | PH917 HB LHD | RN1956V | PN0537 | DN1509 | FN0609 | |
| 01.17~ | 1600 | G4FG | PH917 SDN LHD | RN1956V | PN0537 | DN1509 | FN0609 |
