ROTOR DISC » RN1442V

RN1442V

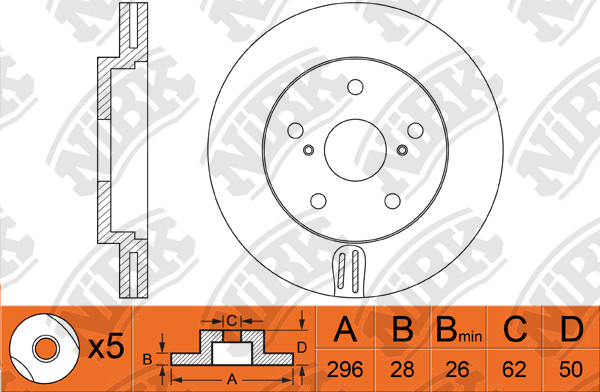

Specification

Type
Vented
Disc Thickness (Max)
28
Num. of holes
5
Height
50
Centering Diameter
62
Front/Rear
Front
Outter Ø
296
Pitch Circle Ø
114.3
Disc Thickness (Min)
26
Drum Ø:
141
Structure Material
G3000

Cross Reference

LEXUS
4351248020
LEXUS
4351248031
LEXUS
4351248050
TOYOTA
43512-48031
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

LEXUS   »   RX300

01.98~02.03 3000 1MZ-FE MCU15 RN1442V PN1401PN1481 RN1251 PN1321 FN0633

TOYOTA   »   Highlander

11.00~05.07 2400 2AZ-FE ACU25 RN1442V PN1457 RN1255 PN1498 FN0567
08.03~05.07 3300 3MZ-FE MCU28 RN1442V PN1457 RN1255 PN1498 FN0567

TOYOTA   »   Kluger

01.00~05.07 2400 2AZ-FE ACU20W RN1442V PN1457 RN1223RN1255 PN1498PN1458 FN0633FN0567
08.00~11.11 2400 2AZ-FE ACU25W RN1442V PN1457 RN1251RN1255 PN1458PN1498 FN0633FN0567
