ROTOR DISC » RN1341V

RN1341V

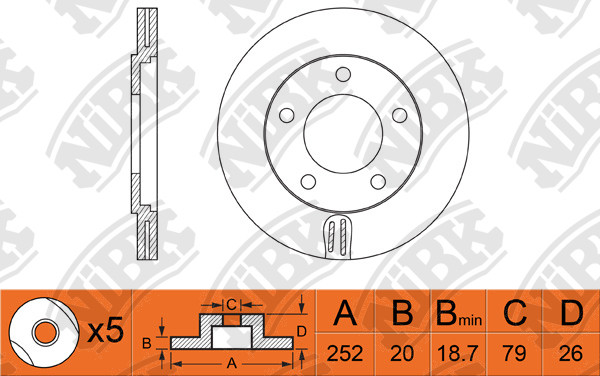

Specification

Type
Vented
Disc Thickness (Max)
20
Num. of holes
5
Height
26
Centering Diameter
79
Front/Rear
Front
Pitch Circle Ø
104
Outter Ø
252
Disc Thickness (Min)
18
Drum Ø:
128
Structure Material
G3000

Cross Reference

BENDIX
561234B
BENDIX EUR
561234B
TOYOTA
43512-26030
TOYOTA
43512-26031
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

TOYOTA   »   Hilux

10.81~09.88 1600 12R-J RN35 RN1341VDN1274 PN1042FN2256 DN1107 FN2260FN2256
