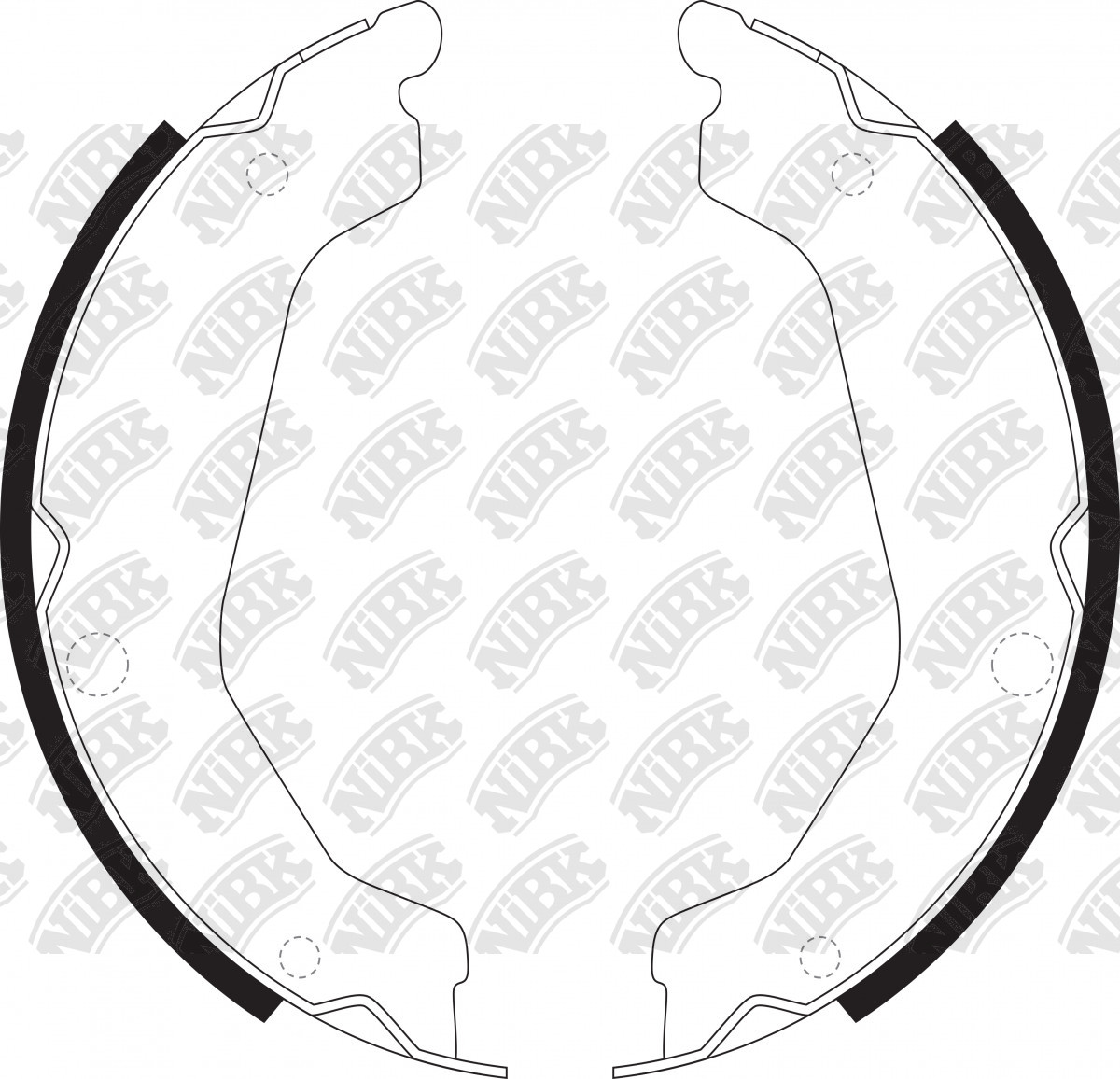

BRAKE SHOE » FN0631

Specification

Radius
95
Width
40
Thickness
4 / 6
Pcs In Set
4

Cross Reference

HYUNDAI
58350-3ED00
HYUNDAI
58350-H1A40
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
02.01~09.04 2500 D4BH (4D56) PA00 RN1312V PN0853 PN0098 FN0631
02.01~06.04 2900 J3 HP LHD RN1312V PN0853 PN0098 FN0631
06.04~01.08 2900 J3 HP LHD PN0853 PN0098 FN0631
06.04~01.08 2900 J3 HP RHD PN0853 PN0098 FN0631
02.01~06.04 3500 G6CU HM81 RN1312V PN0853 PN0098 FN0631
06.04~01.08 3500 G6CU HM81 RN1312V PN0853 PN0098 FN0631
02.02~04.06 2400 G4JS JC RN1313V PN0441PN0115 RN1197V PN0798PN0447 FN0631
02.02~04.06 2400 G4JS JC RN1313V PN0441PN0115 RN1197V PN0798PN0447 FN0631
02.02~04.06 2500 D4CB A1 JC RN1313V PN0441 RN1197V PN0798 FN0631
02.02~04.06 3500 G6CU JC RN1313V PN0441 RN1197V PN0447PN0798 FN0631

Exemption from liability: the catalog data is advisory and can be used for reference only
