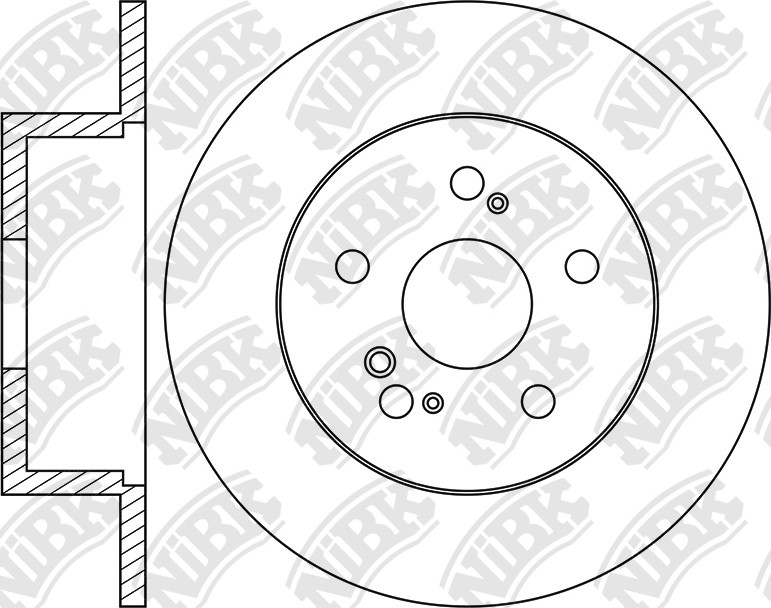

ROTOR DISC » RN1229
Specification
Type
Solid
Disc Thickness (Max)
12
Num. of holes
5
Height
68.7
Centering Diameter
62
Pitch Circle Ø
114.3
Front/Rear
Rear
Outter Ø
290
Drum Ø:
190
Disc Thickness (Min)
10.5
Structure Material
G3000
Cross Reference
BENDIX
562276B
TOYOTA
42431-08030
TOYOTA
42431-08040
TOYOTA
42431-28090
TOYOTA
42431-28091
TOYOTA
42431-28140
TOYOTA
42431-28150
TOYOTA
42431-28160
TOYOTA
42431-44030
TOYOTA
4243128120
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 05.02~05.08 | 2400 | 2AZ-FE | ANH10W | RN1162V | PN1480 | RN1229 | PN1449 | FN0567 |
| 05.02~05.08 | 2400 | 2AZ-FE | ANH15W | RN1162V | PN1480 | RN1229 | PN1449 | FN0567 |
| 05.02~05.08 | 2400 | 2AZ-FXE | ATH10W | RN1162V | PN1480 | RN1229 | PN1449 | |
| 05.02~01.08 | 3000 | 1MZ-FE | MNH10 | RN1162V | PN1480 | RN1229 | PN1449 | FN0567 |
| 05.02~04.08 | 3000 | 1MZ-FE | MNH15W | RN1162V | PN1480 | RN1229 | PN1449 | FN0567 |
| 05.01~12.09 | 2000 | 1AZ-FE | ACM20L | RN1009V | PN1470 | RN1229 | PN1449 | FN0567 |
| 01.01~12.04 | 2000 | 1CD-FTV | CLM20L | RN1009V | PN1470 | RN1229 | PN1449 | FN0567 |
| 02.00~01.06 | 2400 | 2AZ-FE | ACR30W | RN1162VRN1009V | PN1480PN1448PN1784 | RN1229 | PN1449 | FN0567 |
| 12.99~01.06 | 3000 | 1MZ-FE | MCR30W | RN1162V | PN1480 | RN1229 | PN1449 | FN0567 |
| 12.99~01.06 | 3000 | 1MZ-FE | MCR40W | RN1009V | PN1784PN1448 | RN1229 | PN1449 | FN0567 |
| 01.00~01.06 | 2400 | 2AZ-FE | ACR30 | RN1162V | PN1448PN1480 | RN1229 | PN1449 | |
| 01.99~01.06 | 2400 | 2AZ-FE | ACR40W | RN1009VRN1162V | PN1784PN1448PN1480 | RN1229 | PN1449 | FN0567 |
| 01.01~01.06 | 2400 | 2AZ-FXE | AHR10W | RN1009V | PN1448PN1470 | RN1229 | PN1449 | FN0567 |
| 01.01~01.09 | 2400 | 2AZ-FE | ACM21W | RN1009V | PN1470 | RN1229 | PN1449 | FN0567 |
| 01.01~01.09 | 2400 | 2AZ-FE | ACM26W | RN1009V | PN1470 | RN1229 | PN1449 | FN0567 |
| 09.04~05.11 | 1800 | 1ZZ-FE | ZNM10W | RN1009V | PN1479 | RN1229 | PN1449 | FN0567 |
| 09.09~01.18 | 1800 | 2ZR-FAE | ZGM15_ | RN1009V | PN1479 | RN1229 | PN1449 | |
| 09.09~01.18 | 1800 | 3ZR-FAE | ZGM11G | RN1009V | PN1479 | RN1229 | PN1449 | FN0567 |
| 09.09~01.18 | 1800 | 3ZR-FAE | ZGM11W | RN1009V | PN1479 | RN1229 | PN1449 | FN0567 |
| 09.04~05.11 | 2000 | 1AZ-FSE | ANM10G | RN1009V | PN1479 | RN1229 | PN1449 | FN0567 |
| 09.04~09.09 | 2000 | 1AZ-FSE | ANM10W | RN1009V | PN1479 | RN1229 | PN1449 | |
| 09.04~05.11 | 2000 | 1AZ-FSE | ANM15 | RN1009V | PN1479 | RN1229 | PN1449 | FN0567 |
| 04.10~12.16 | 2000 | 3ZR-FAE | ZRR70 | RN1434V | PN1524 | RN1229DN1211 | FN2371PN1449 | FN0567 |
| 08.08~04.10 | 2000 | 3ZR-FE | ZRR70 | RN1434V | PN1524 | RN1229 | PN1449 | FN0567 |
| 06.07~04.10 | 2000 | 3ZR-FAE | ZRR70 | RN1434V | PN1524 | RN1229DN1211 | FN2371PN1449 | FN0567 |
| 06.07~04.14 | 2000 | 3ZR-FAE | ZRR75 | RN1434V | PN1524 | RN1229 | PN1449 | FN0567 |
| 01.14~06.15 | 2000 | 3ZR-FAE | ZRR80 | RN1434V | PN1524 | DN1211RN1229 | FN2371PN1804 | FN0567 |
| 01.14~12.21 | 2000 | 3ZR-FAE | ZRR85 | RN1434V | PN1524 | RN1229 | PN1804 | FN0567 |
| 05.01~12.09 | 2000 | 1AZ-FE | ACM20L | RN1009V | PN1470 | RN1229 | PN1449 | FN0567 |
| 05.01~01.06 | 2000 | 1CD-FTV | CLM20L | RN1009V | PN1401 | RN1229 | PN1449 | FN0567 |
| 05.01~12.09 | 2000 | 3S-FE | CLM20L | RN1009V | PN1401 | RN1229 | PN1449 |
| 05.01~01.06 | 2000 | 1CD-FTV | CLR30L | RN1009V | PN1784PN1448 | RN1229 | PN1449 | FN0567 |
| 01.00~01.06 | 2400 | 2AZ-FE | ACR30L | RN1162VRN1009V | PN1480PN1448PN1784 | RN1229 | PN1449 | FN0567 |
| 02.00~01.06 | 2400 | 2AZ-FE | ACR30R | RN1162VRN1009V | PN1480PN1784PN1448 | RN1229 | PN1449 | FN0567 |
| 01.03~12.06 | 3300 | 3MZ-FE | MCL20L | RN1162V | PN1480 | DN1278RN1229 | PN1449FN2378 | FN0567 |
| 01.03~12.06 | 3300 | 3MZ-FE | MCL25 | RN1162V | PN1480 | RN1229 | PN1449 | FN0567 |
| 12.06~01.10 | 3500 | 2GR-FE | GSL20 | RN1162V | PN1480 | RN1229DN1278 | FN2378PN1449 | FN0567 |
| 12.06~01.10 | 3500 | 2GR-FE | GSL20L | RN1162V | PN1480 | RN1229DN1278 | FN2378PN1449 | FN0567 |
| 12.06~01.10 | 3500 | 2GR-FE | GSL25L | RN1162V | PN1480 | RN1229 | PN1449 | FN0567 |
