ROTOR DISC » RN1069V

RN1069V

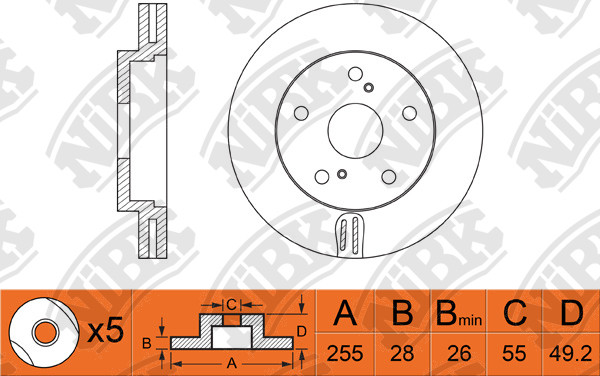

Specification

Type
Vented
Disc Thickness (Max)
28
Num. of holes
5
Height
49.2
Centering Diameter
55
Front/Rear
Front
Pitch Circle Ø
100
Outter Ø
255
Drum Ø:
155
Disc Thickness (Min)
26
Structure Material
G3000

Cross Reference

BENDIX
562077B
TOYOTA
43512-05010
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

TOYOTA   »   Carina E

01.92~12.97 1600 4A-FE AT190L RN1058VRN1069V PN1322 DN1249 FN2285FN2354
01.92~12.97 1800 7A-FE AT191L RN1058VRN1069V PN1322 DN1249 FN2285FN2354
02.92~10.97 1800 7A-FE AT191R RN1069V PN1322 DN1249 FN2354
01.92~12.97 2000 2C CT190L RN1058VRN1069V PN1322 DN1249 FN2285FN2354
01.92~12.97 2000 2C-T CT190 RN1058VRN1069V PN1322 DN1249 FN2354FN2285

TOYOTA   »   Corona

02.92~07.98 1600 4A-FE AT190 RN1069VRN1058V PN1322 DN1249 FN2285

TOYOTA   »   Corona Exiv

09.93~10.94 1800 4S-FE ST201 RN1069VRN1058V PN1322 DN1249 FN2285
