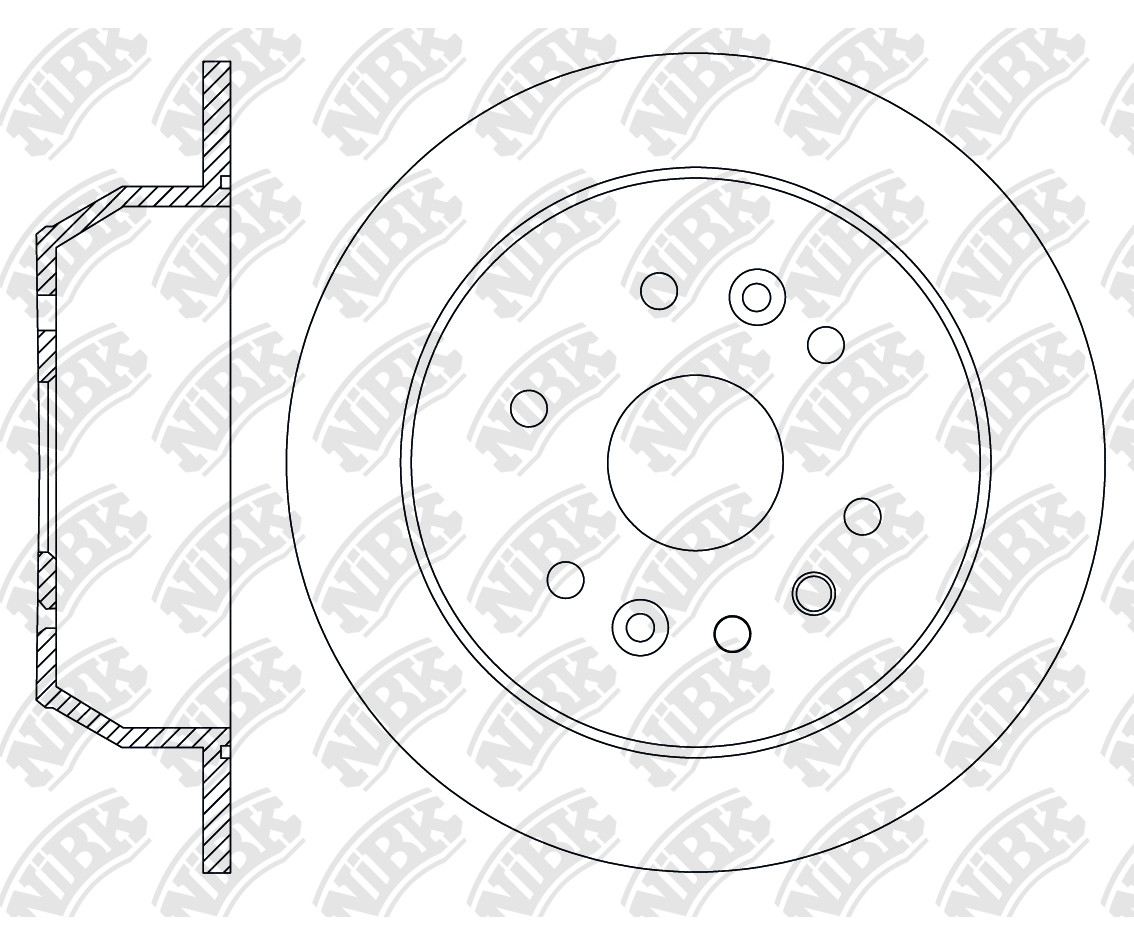

ROTOR DISC » RN2608V

RN2608V

Specification

Type
Solid
Outter Ø
302
Num. of holes
6
Disc Thickness (Max)
12
Height
69.6
Centering Diameter
96.3
Front/Rear
Rear
Structure Material
G3000
Hole Ø:
12.6
Disc Thickness (Min)
10.4
Pitch Circle Ø
139.7
Drum Ø:
190

Cross Reference

HYUNDAI / KIA
58411-4D500
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

HYUNDAI   »   Entourage

04.06~02.10 3800 G6DA VQ RN2607V PN0446 RN2608V PN0415 FN0827

KIA   »   Sedona

02.05~11.06 3800 G6DA K4D US RN2607V PN0446 RN2608V PN0797 FN0827
