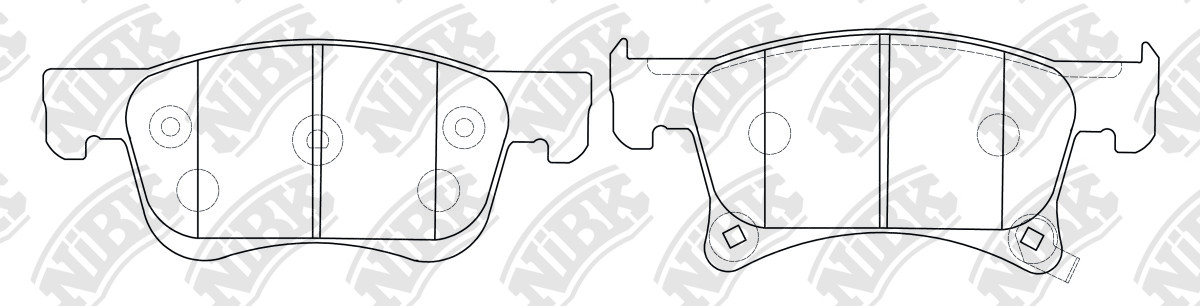

BRAKE PADS » PN34004

Specification

Brake System
ATE
Length-1
155.1
Width-1
68.3
Length-2
155.1
Width-2
62.1
Thickness-1
17.4
Thickness-2
17.4
Pcs In Set
4

Cross Reference

GM
39122150
GM
95517029
GM
95524973
OPEL
16 05 281
VAUXHALL
95517029
WVA
22123
WVA
22124
WVA
22125
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
07.14~ 1000 B10XFL 3DR HB RN1592V PN34004 DN1564DN1563 FN0624FN0682
07.14~ 1200 A12XEL 3DR HB RN1592V PN34004 DN1563DN1564 FN0624FN0682
07.14~ 1200 B12XEL 3DR HB RN1592V PN34004 DN1564DN1563 FN0624FN0682
07.14~ 1400 A14XEL 3DR HB RN1592V PN34004 DN1564DN1563 FN0682FN0624
07.14~ 1400 A14XER 3DR HB RN1592V PN34004 DN1563DN1564 FN0624FN0682
07.14~ 1400 B14NET 3DR HB RN1592V PN34004 DN1563DN1564 FN0624FN0682
01.13~03.19 1400 B14XEL 3DR HB RN1592V PN34004PN0211W DN1564DN1563 FN0682FN0624

Exemption from liability: the catalog data is advisory and can be used for reference only
