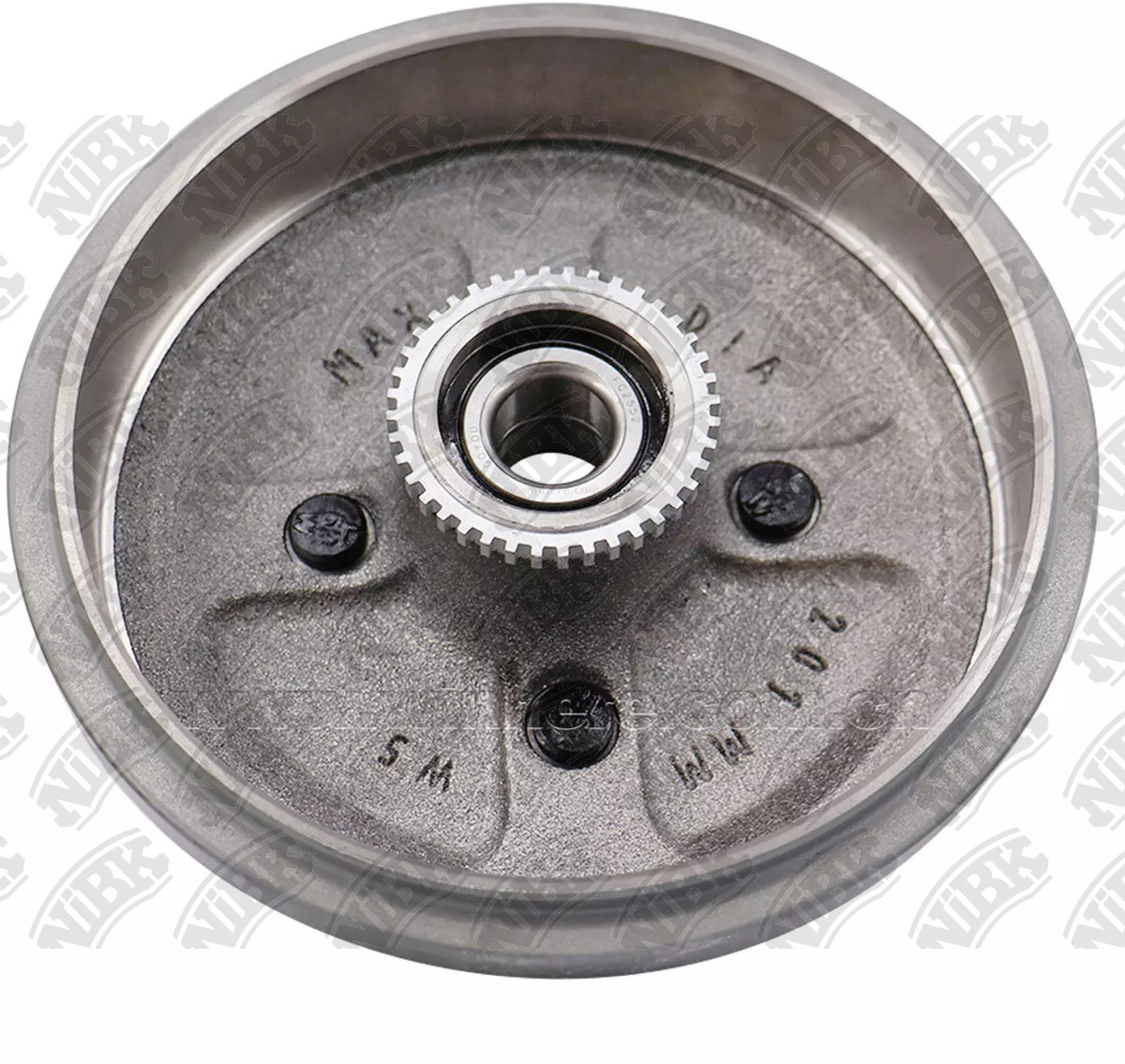

DRUM BRAKE » DN1668H
Specification
Outter Ø
230
Num. of holes
4
Hole Ø
12
Centering Diameter
51.9-52.5
Height
70
Pitch Circle Ø
100
Drum Ø
200
Structure Material
G3000
Notes
w/Wheel Bearing,
w/ABS Sensor Ring
Variation
Cross Reference
CHEVROLET
96386900
DAEWOO
96386901
GM
95903584
GM
95903585
GM
96386900
GM
96386901
GM
96471276
GM
96471277
GM
96471278
GM
96471279
GM
96471783
GM
96471784
GM
96473233
GM
96473234
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 03.02~01.08 | 1400 | F14D3 / L14 | SA48 5DR HB | RN1206V | PN0370PN0374 | DN1668 | FN11174 | |
| 03.02~01.08 | 1400 | F14D3 / L14 | SDN CHL | RN1206V | PN0370PN0374 | DN1668 | FN11174 | |
| 03.02~02.08 | 1500 | F15S3 / LX6 | SA48 5DR HB RHD | RN1206V | PN0370 | DN1668DN1680 | FN11174 | |
| 03.02~02.08 | 1500 | F15S3 / LX6 | SF69 | RN1206V | PN0370 | DN1680DN1668 | FN11174 |
