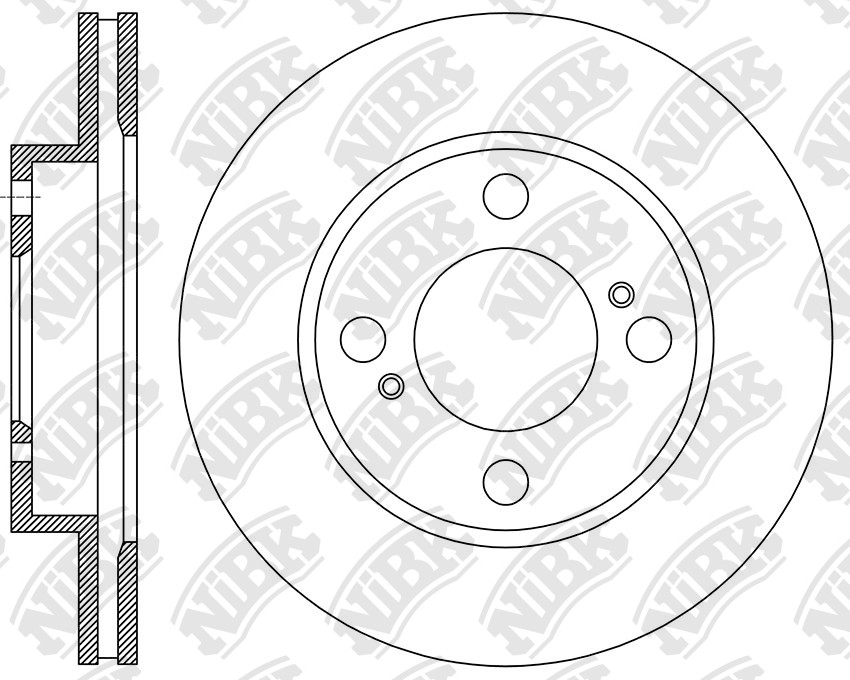

ROTOR DISC » RN2531V

RN2531V

Specification

Type
Vented
Outter Ø
231
Num. of holes
4
Disc Thickness (Max)
20
Disc Thickness (Min)
18
Height
51.4
Centering Diameter
60
Pitch Circle Ø
100
Drum Ø:
125
Front/Rear
Front
Structure Material
G3000

Cross Reference

MARUTI
55311M68K00
NISSAN
40206-4A00G
SUZUKI
55311-M68K00
SUZUKI
55311-M68K10
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

MARUTI SUZUKI   »   ALTO

04.12~04.19 800 F8DN FB32S RN2531V PN9443PN9426 FN0660FN9959

NISSAN   »   Pixo

03.09~08.13 1000 K10B UA0 RN2531V PN9426 DN1567 FN0660

SUZUKI   »   Alto

08.15~12.19 800 F8-DN FB32S LHD RN2531V PN9426PN9443 FN0660FN9959
06.07~12.12 800 F8D RF308 RN2531V PN9426 FN0660
01.09~01.15 1000 K10B FB31S RN2531V PN9443 FN0660
01.09~01.15 1000 K10B FC31S RN2531V PN9443 FN0660
01.09~01.15 1000 K10BN FC31S LHD RN2531V PN9443 FN0660
01.09~01.15 1000 K10BN FC31SX RN2531V PN9443 FN0660

SUZUKI   »   Celerio

01.08~01.15 1000 K10B AMF310 LHD RN2531V PN9443 FN0660
01.08~01.15 1000 K10BN AMF310-2 RHD RN2531V PN9443 FN0660
