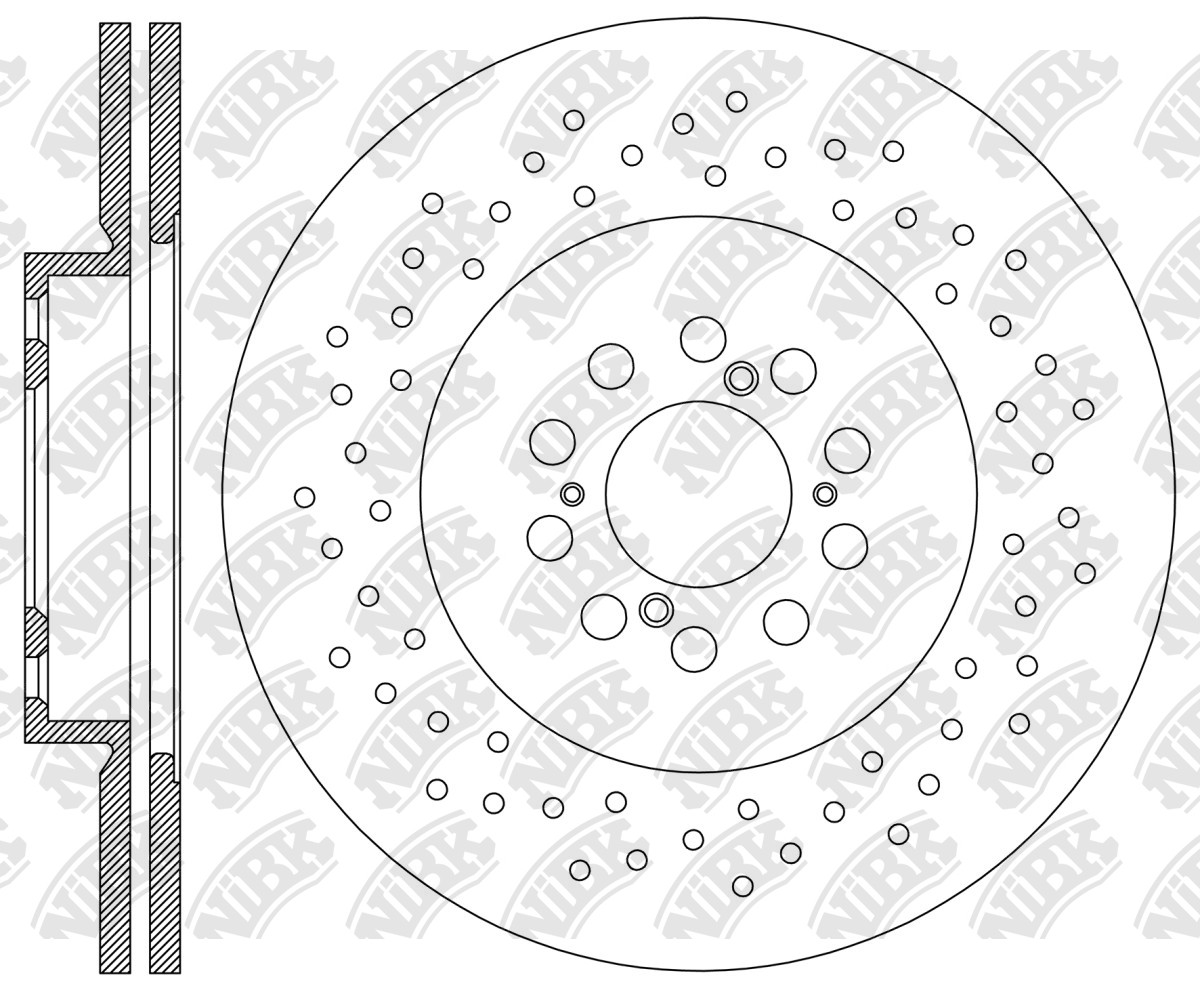

PERFORMANCE ROTOR DISC » RN2513D

RN2513D

Specification

Structure Material
GG20
Type 1:
Vented
Type 2:
Drilled
Outter Ø
350
Num. of holes
10
Disc Thickness (Max)
32
Disc Thickness (Min)
30
Height
54.5
Centering Diameter
70.1
Pitch Circle Ø
120
Drum Ø:
161
Front/Rear
Front

Cross Reference

HONDA
45251-TV8-E02
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

HONDA   »   Civic Type R

06.17~07.21 2000 K20C FK8 JPN RN2513D PN0150S RN2514 PN8813
01.17~01.20 2000 K20C FK8 RHD RN2513D PN0150S RN2514 PN8813
03.15~12.17 2000 K20C1 FK2 RN2513D PN0150S PN1840
