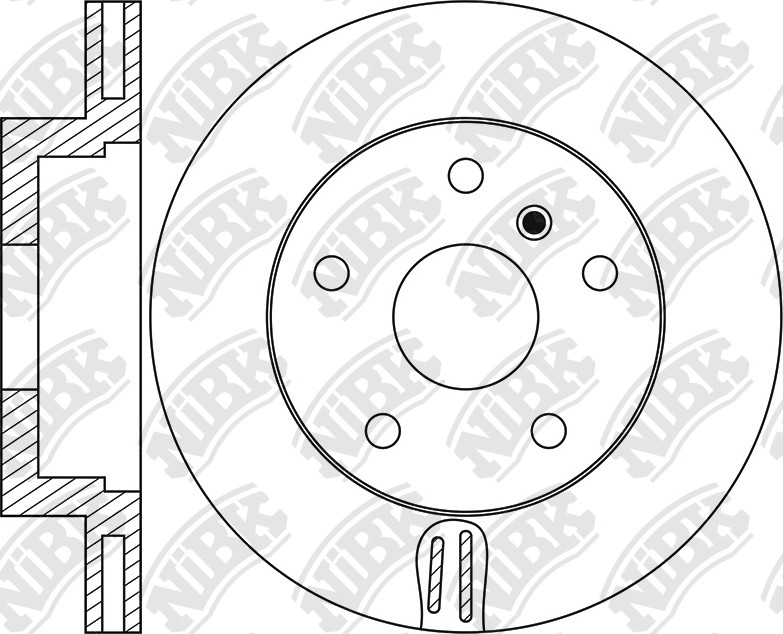

ROTOR DISC » RN1938V

Specification

Type
Vented
Outter Ø
344
Num. of holes
5
Disc Thickness (Max)
30
Height
76
Centering Diameter
79
Pitch Circle Ø
120
Drum Ø:
172
Front/Rear
Front

Cross Reference

LAND ROVER
SDB500181
LAND ROVER
SDB500182
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
03.02~01.07 3000 M57D30 / 306D1 LM RN1938V PN0484 RN1939V PN0485 FN0638
02.05~02.09 4400 448PN / AJ4 LM RN1938V PN0484 RN1939V PN0485 FN0638

Exemption from liability: the catalog data is advisory and can be used for reference only
