NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN1907V

Product
Application

ROTOR DISC » RN1907V

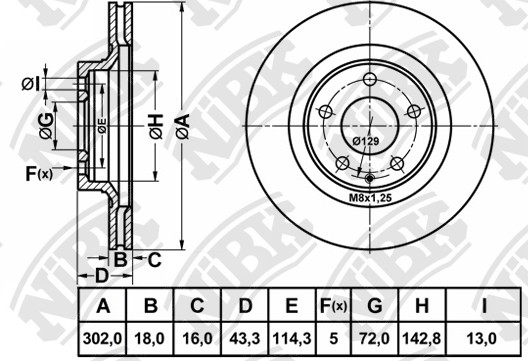

Specification

Type

Vented

Outter Ø

302

Num. of holes

5

Disc Thickness (Max)

18

Height

43.3

Centering Diameter

72

Pitch Circle Ø

114.3

Front/Rear

Rear

Structure Material

G3000

Hole Ø:

13

Disc Thickness (Min)

16

Drum Ø:

142.8

Cross Reference

MAZDA

F151-26-251

MAZDA

F151-26-251A

MAZDA

F152-26-251

MAZDA

F152-26-251A

OEM

F15226251

years	Eng	Eng No	BodyBody	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

MAZDA » RX-8

01.08~06.12	1300	13B	FE	RN1908V	PN5801	RN1907V	PN9800
05.03~09.05	1300	13B	SE	RN1908V	PN5801	RN1907V	PN9800
02.08~06.12	1300	13B-MSP	SE3P	RN1908V	PN5801	RN1907V	PN9800
03.02~03.08	1300	13B-MSP	SE3P JPN	RN1908V	PN5801	RN1907V	PN9800
