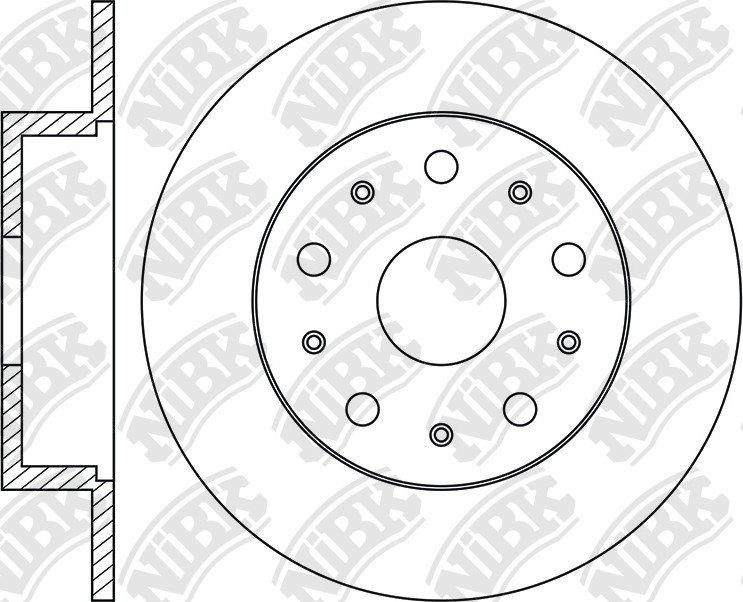

ROTOR DISC » RN1873

Specification

Type
Solid
Outter Ø
276
Num. of holes
5
Disc Thickness (Max)
10
Height
51.5
Centering Diameter
59
Pitch Circle Ø
108
Front/Rear
Rear

Cross Reference

ALFA ROMEO
71739570
BENDIX
562017B
FIAT
60814646
FIAT
60874646
FIAT
82488240
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
10.00~10.03 2000 AR36301 936 RN1873 PN0104
08.98~06.00 2500 AR34201 936 PN0150W RN1873 PN0104
07.00~09.03 2500 AR36201 936 RN1874V PN0150W RN1873 PN0104
08.98~06.00 3000 AR34301 936 RN1874V PN0150W RN1873 PN0104
09.03~06.07 3200 936 RN1874V PN0150W RN1873 PN0104

Exemption from liability: the catalog data is advisory and can be used for reference only
