ROTOR DISC » RN2438V

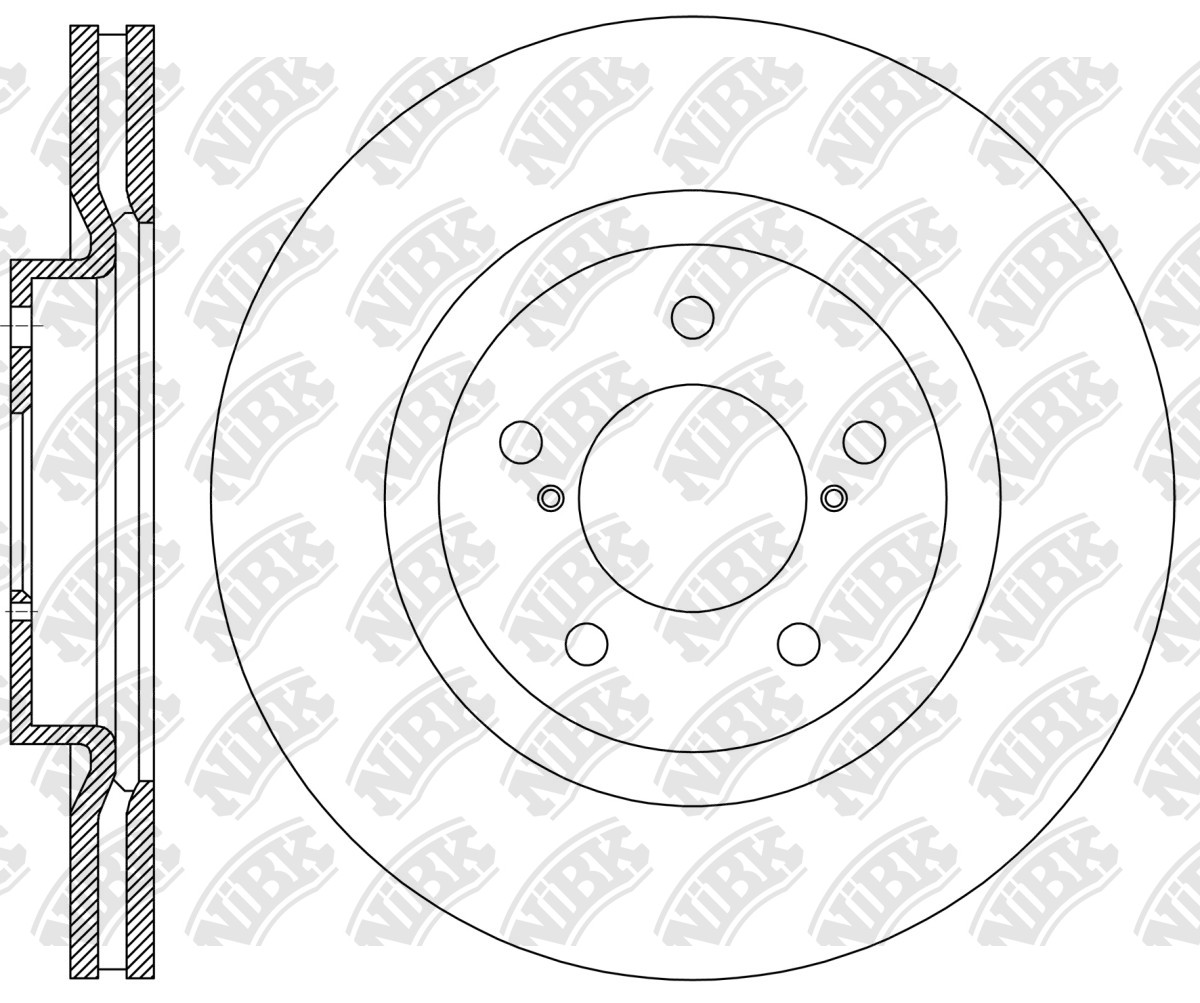

RN2438V

Specification

Type
Vented
Outter Ø
316
Num. of holes
5
Hole Ø:
13
Disc Thickness (Max)
28
Disc Thickness (Min)
26
Height
48.2
Centering Diameter
58
Pitch Circle Ø
114.3
Drum Ø:
150
Front/Rear
Front
Structure Material
G3000

Cross Reference

SUBARU
26300-AN00A
SUBARU
26300-AN010
SUBARU
26300-FN010
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

SUBARU   »   CrossTrek

11.22~ 2000 FB20D GU7 RN2438V PN7805 RN2170V PN7804
11.22~ 2000 FB20W GUD RN2438V PN7805 RN2170V PN7804
11.22~ 2000 FB20W GUE RN2438V PN7805 RN2170V PN7804
11.22~ 2500 FB25D GU9 RN2438V PN7805 RN2170V PN7804

SUBARU   »   Forester

04.24~ 2000 FB20W SL RN2438V PN7805 RN1691V PN7804
01.24~ 2500 FB25D SL9 RN2438V PN7805 RN1691V PN7804

SUBARU   »   Impreza

01.23~ 2000 FB20D GU7 RN2438V PN7805 RN2170V PN7804
01.23~ 2000 FB25D GU9 RN2438V PN7805 RN2170V PN7804

SUBARU   »   Legacy

08.20~ 2500 FB25D BW# RN2438V PN7805 RN1691V PN7804

SUBARU   »   Legacy Outback

10.21~ 1800 CB18E BT5 RN2438V PN7805 RN1691V PN7804
05.19~ 2400 FA24F BTG RN2438V PN7805 RN1691V PN7804
08.20~ 2500 FB25D BT# RN2438V PN7805 RN1691V PN7804

SUBARU   »   WRX/LEVORG

11.21~ 2400 FA24E VBH RN2438VRN2169V PN7805 RN1691VRN2448V PN7803PN7804 FN0755
