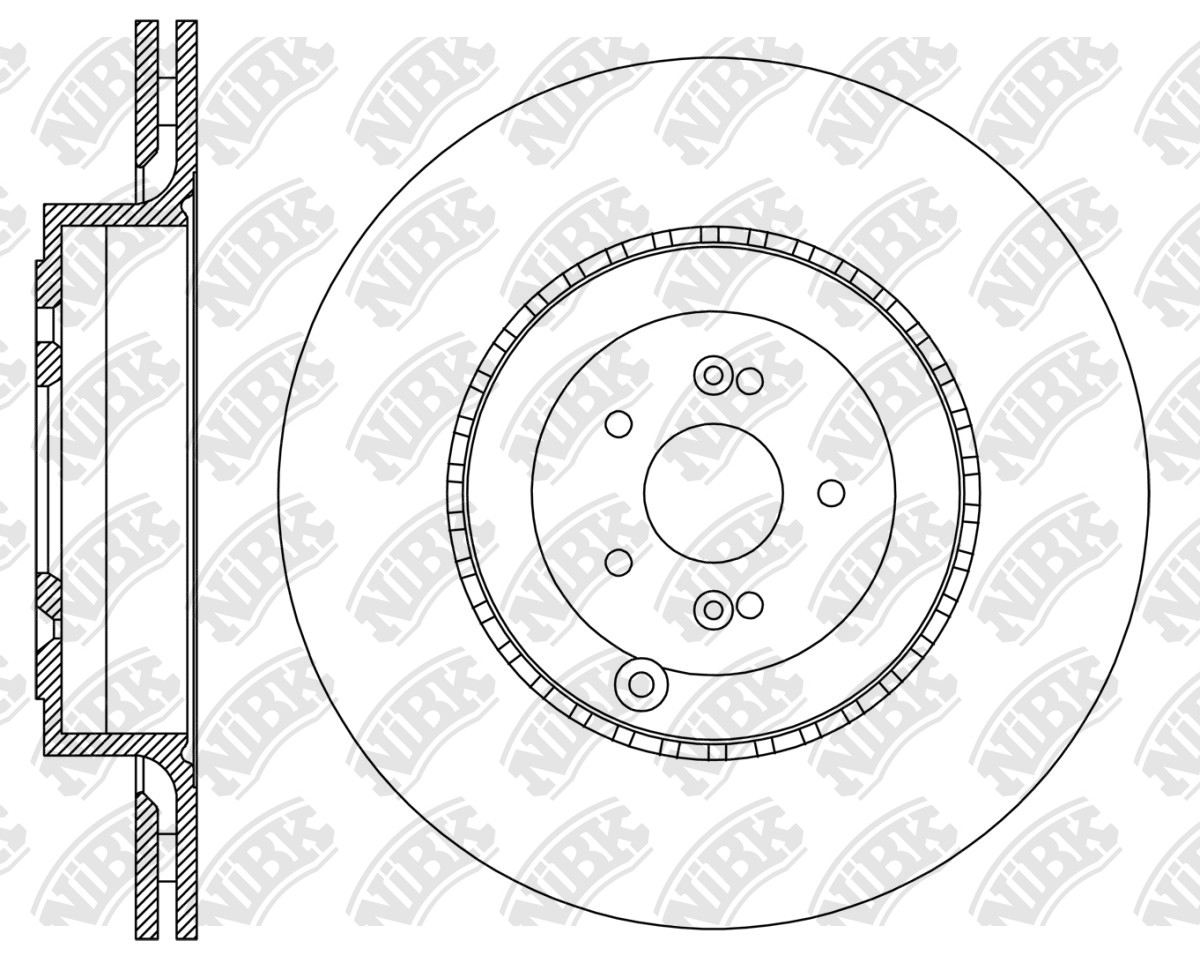

ROTOR DISC » RN2336V

Specification

Type
Vented
Outter Ø
340
Num. of holes
5
Hole Ø:
12.5
Disc Thickness (Max)
22
Disc Thickness (Min)
20
Height
58.5
Centering Diameter
69
Pitch Circle Ø
114.3
Drum Ø:
190
Front/Rear
Rear
Structure Material
G3000

Cross Reference

HYUNDAI / KIA
58411-J5500
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
06.17~04.21 3300 G6DP AE551 RN2267V PN6124 RN2336V PN6125 FN0758

Exemption from liability: the catalog data is advisory and can be used for reference only
