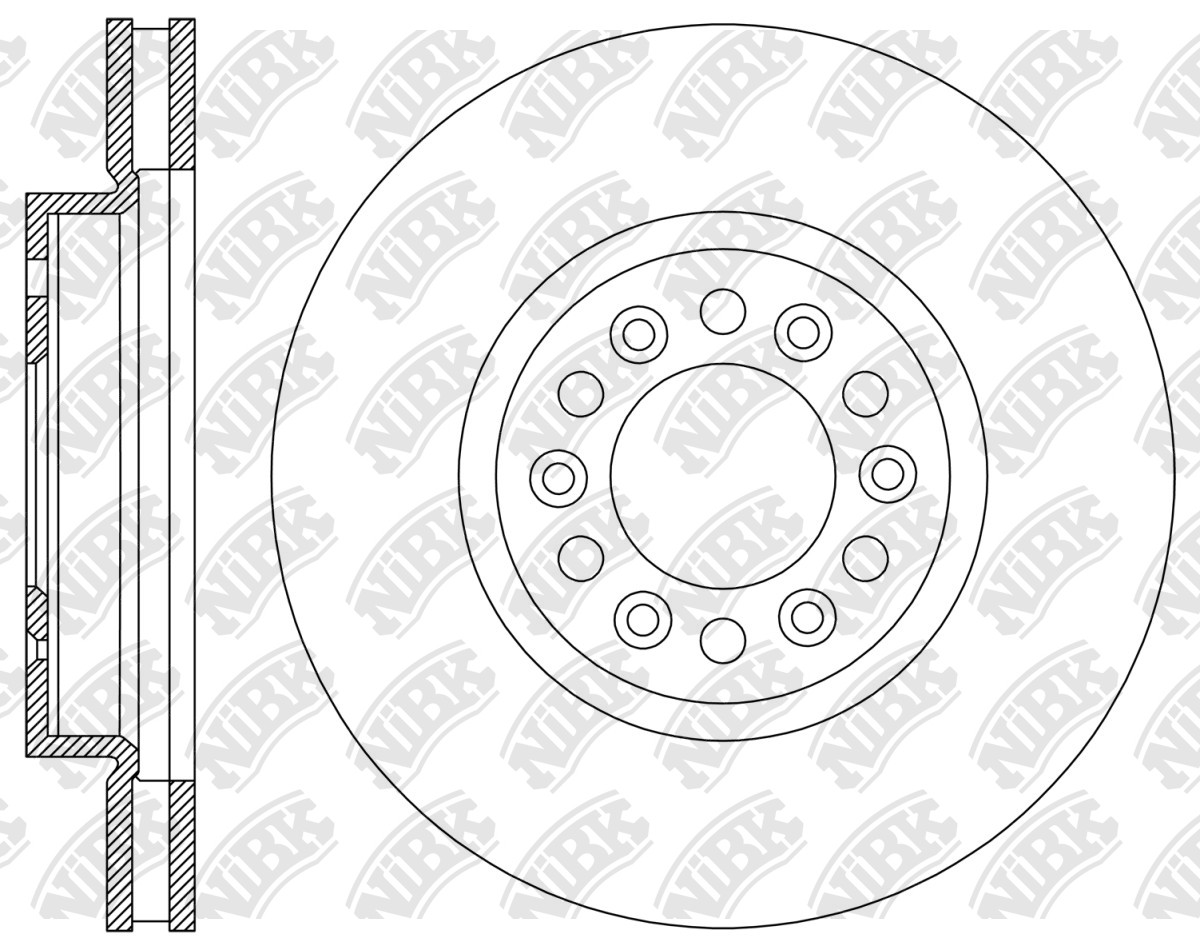

ROTOR DISC » RN2324V
Specification
Type
Vented
Outter Ø
315
Num. of holes
6
Hole Ø:
16
Disc Thickness (Max)
23
Disc Thickness (Min)
20
Height
48
Centering Diameter
67.5
Pitch Circle Ø
120
Drum Ø:
207
Front/Rear
Rear
Structure Material
G3000
Cross Reference
GM
13507408
GM
13514473
GM
13516725
GM
13516726
GM
13526775
GM
13592624
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 12.19~ | 2000 | LSY | XT5 | RN2323V | PN28001PN52021 | RN2324V | PN52003PN52004 | |
| 05.16~ | 3600 | LGX | RN2323V | PN28001PN52021 | RN2324V | PN52003PN52004 |
| 01.19~ | 2000 | LSY | 6N#26 | RN2323V | PN52021PN28001 | RN2324V | PN52004PN52003 | |
| 01.19~ | 3600 | LGX | 6N#26 | RN2323V | PN52021PN28001 | RN2324V | PN52004PN52003 |
| 06.18~ | 2000 | LSY | 1N | RN2469V | PN52021PN28001 | RN2324V | PN52004PN52003 | |
| 06.18~ | 2500 | LCV | 1N | RN2469V | PN52021PN28001 | RN2324V | PN52004PN52003 | |
| 06.18~ | 3600 | LGX | 1NK26 | RN2469V | PN52021PN28001 | RN2324V | PN52004PN52003 |
