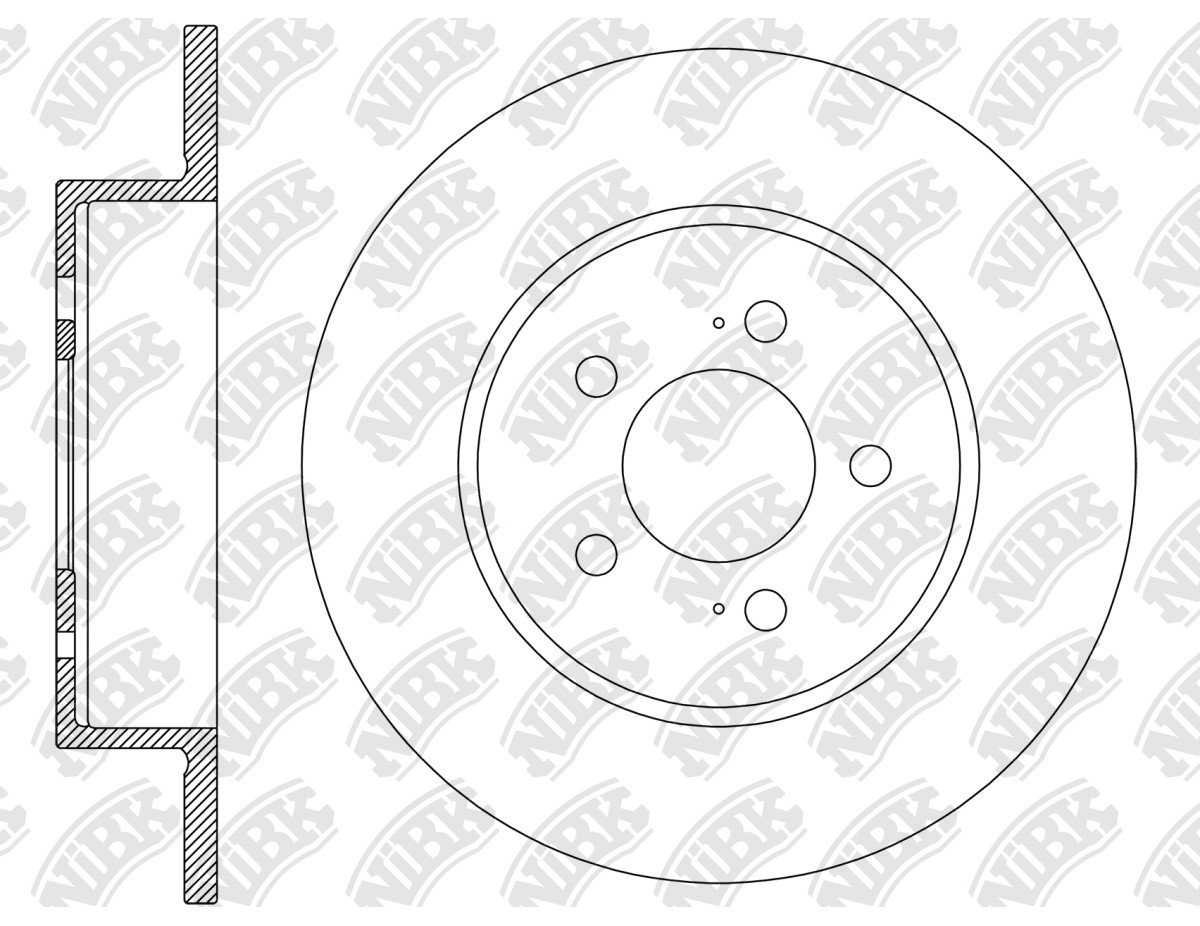

ROTOR DISC » RN2274

RN2274

Specification

Type
Solid
Outter Ø
324
Num. of holes
5
Disc Thickness (Max)
13
Disc Thickness (Min)
11.4
Height
66.8
Centering Diameter
85
Pitch Circle Ø
130
Front/Rear
Rear
Structure Material
G3000
Hole Ø:
17.4
Drum Ø:
209

Cross Reference

SSANGYONG
48401-38000
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

SSANGYONG   »   Musso

01.18~ 2000 G20DTR PICK UP RN2133V PN0446 RN2274 PN0415
04.21~ 2200 D22DTR PICK UP  GRAND RN2133V PN0446 RN2274 PN0415
01.18~ 2200 D22DTR QK RN2133V PN0446 RN2274 PN0415

SSANGYONG   »   Rexton Sports

01.18~ 2200 D22DTR PICK UP RN2133V PN0789 RN2274 PN0415
