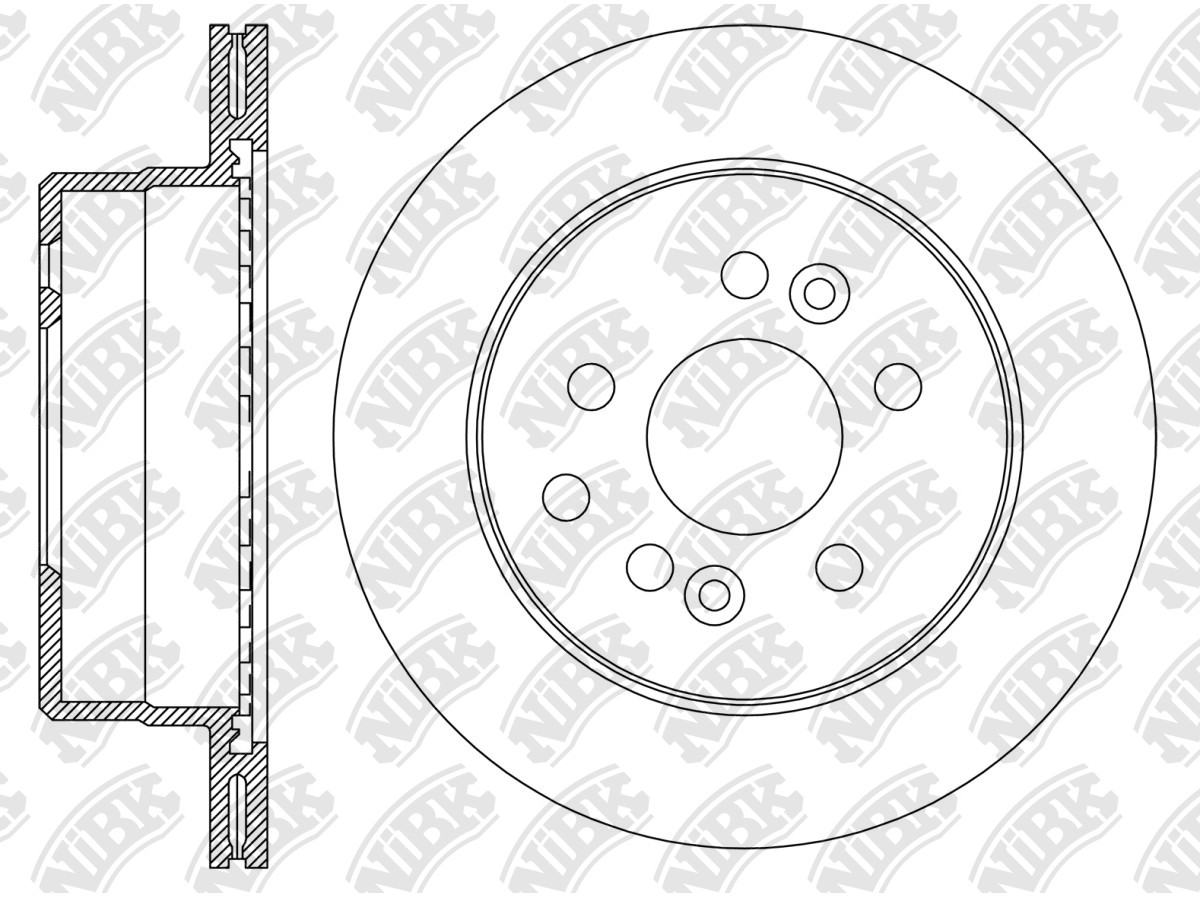

ROTOR DISC » RN2265V

Specification

Type
Vented
Outter Ø
307
Num. of holes
5
Hole Ø:
15.3
Disc Thickness (Max)
20
Disc Thickness (Min)
18.4
Height
83
Centering Diameter
85.1
Pitch Circle Ø
130
Drum Ø:
190.1
Front/Rear
Rear
Structure Material
G3000

Cross Reference

SSANGYONG
4840121100
SSANGYONG
4840121101
SSANGYONG
4840121102
SSANGYONG
4840121103
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
05.07~07.13 3200 G32D MPV -11P RN1456V PN0103 RN2265V PN0797 FN0750
01.13~03.19 2000 D20DTR MPV -7P RN1456V PN0103 RN1749VRN2265V PN0797 FN0750
01.13~03.19 2000 D20DTR MPV -9P LHD RN1456V PN0103 RN1749VRN2265V PN0797 FN0750
01.13~03.19 2000 D20DTR MPV -9P RHD RN1456V PN0103 RN1749VRN2265V PN0797 FN0750
01.13~03.16 3200 E32 MPV -7P RN1456V PN0103 RN2265VRN1749V PN0797 FN0750

Exemption from liability: the catalog data is advisory and can be used for reference only
