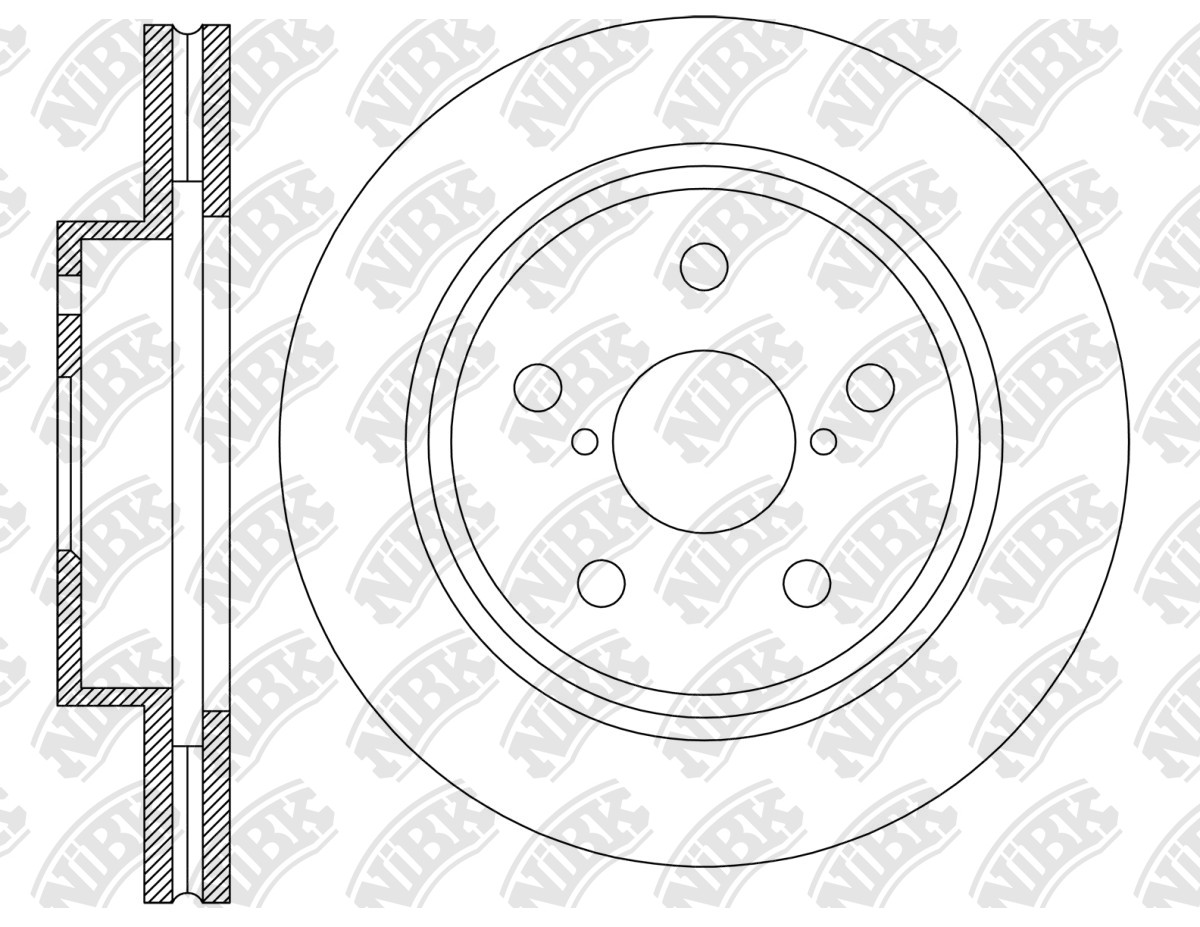

ROTOR DISC » RN2244V

Specification

Type
Vented
Outter Ø
294
Num. of holes
5
Disc Thickness (Max)
24
Disc Thickness (Min)
22
Height
48
Centering Diameter
58
Front/Rear
Front
Structure Material
G3000
Pitch Circle Ø
114.3
Drum Ø:
150
Hole Ø:
12.7

Cross Reference

SUBARU
26300-SJ000
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
10.20~ 1800 CB18E SK5 RN2244V PN7805 RN2170V PN7804
03.18~ 2000 FB20C SK7#KFL RHD RN2244VRN2169V PN7805 RN2170V PN7804
04.18~ 2500 FB25C SK9K RH RN2169VRN2244V PN7805 RN2170V PN7804
03.18~11.21 2500 FB25D SK9L LH RN2244VRN2169V PN7805 RN2170V PN7804

Exemption from liability: the catalog data is advisory and can be used for reference only
