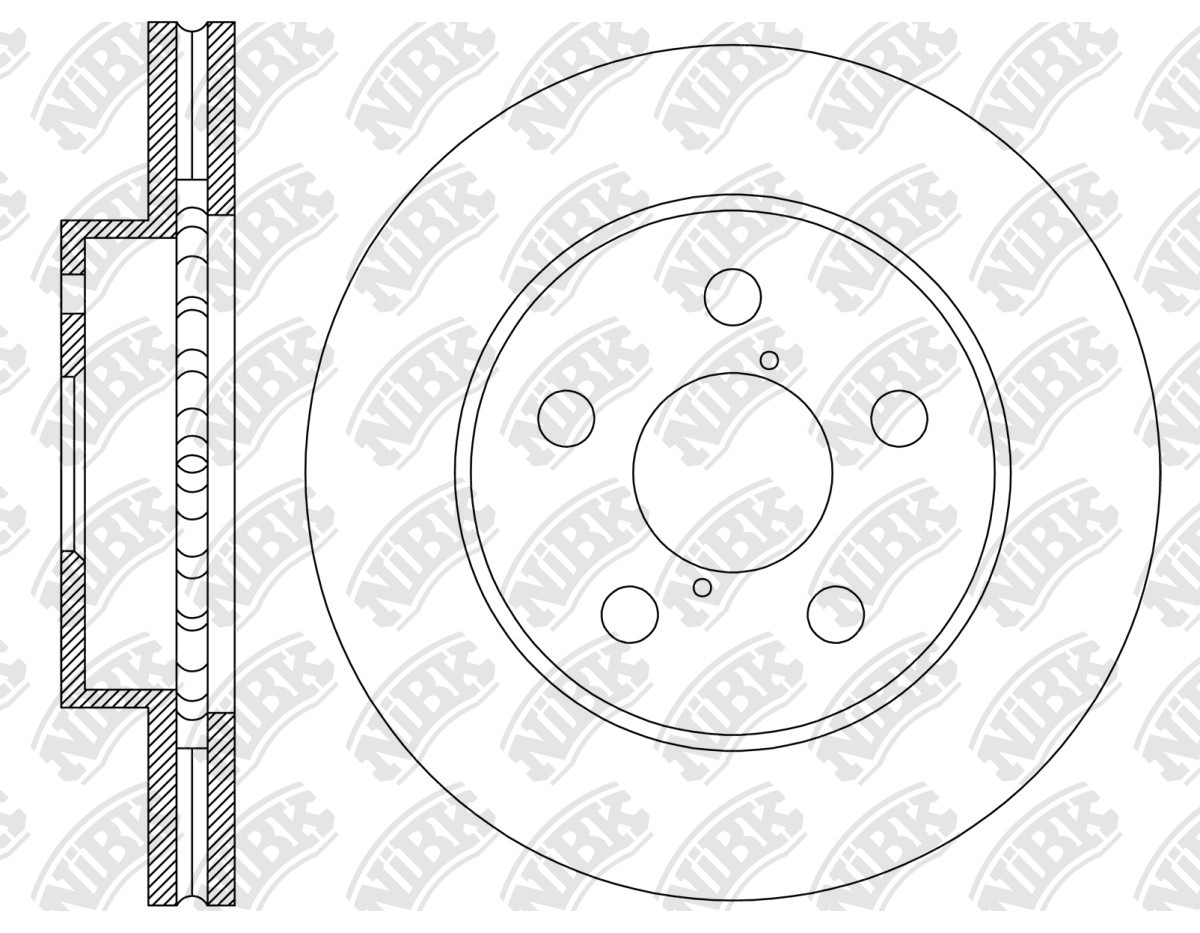

ROTOR DISC » RN2243V

Specification

Type
Vented
Outter Ø
294
Num. of holes
5
Hole Ø:
13
Disc Thickness (Max)
28
Disc Thickness (Min)
26
Height
56.7
Centering Diameter
58
Pitch Circle Ø
114.3
Drum Ø:
148
Front/Rear
Front
Structure Material
G3000

Cross Reference

SUBARU
26300-AL000
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
10.14~08.20 2500 FB25A BN9 JPN RN2243V PN7499 RN1691V PN7804
08.14~08.20 2500 FB25A BN9 RHD RN2243V PN7499 RN1691V PN7804
08.14~08.20 2500 FB25B BN22 RN2243V PN7499 RN1691V PN7804

Exemption from liability: the catalog data is advisory and can be used for reference only
