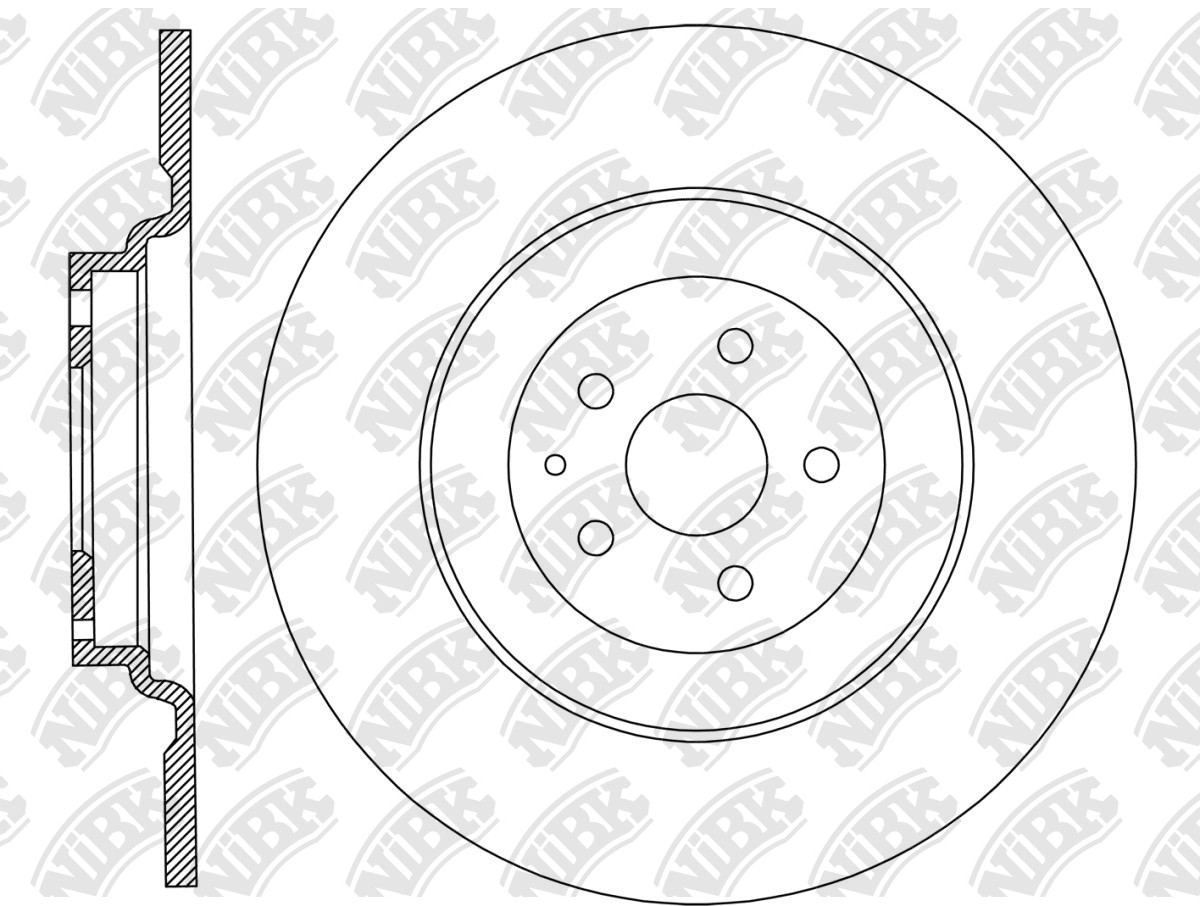

ROTOR DISC » RN2237

RN2237

Specification

Type
Solid
Outter Ø
325
Num. of holes
5
Hole Ø:
13.3
Disc Thickness (Max)
11
Disc Thickness (Min)
9
Height
45
Centering Diameter
68
Pitch Circle Ø
114.3
Front/Rear
Rear
Structure Material
G3000
Drum Ø:
142

Cross Reference

MAZDA
TK78-26-251
MAZDA
TK78-26-251A
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

MAZDA   »   CX-8

12.17~ 2500 PY-VP# KG5P JPN RN2092V PN3813 RN2237 PN2516

MAZDA   »   CX-9

07.17~12.18 2500 PY ALTV05 RN2092V PN3813 RN2237 PN2516
12.18~ 2500 PY TC RN2092V PN3813 RN2237 PN2516

MAZDA (CHANGAN)   »   CX-8

09.18~ 2500 PY KG RN2092V PN3813 RN2237 PN2516
