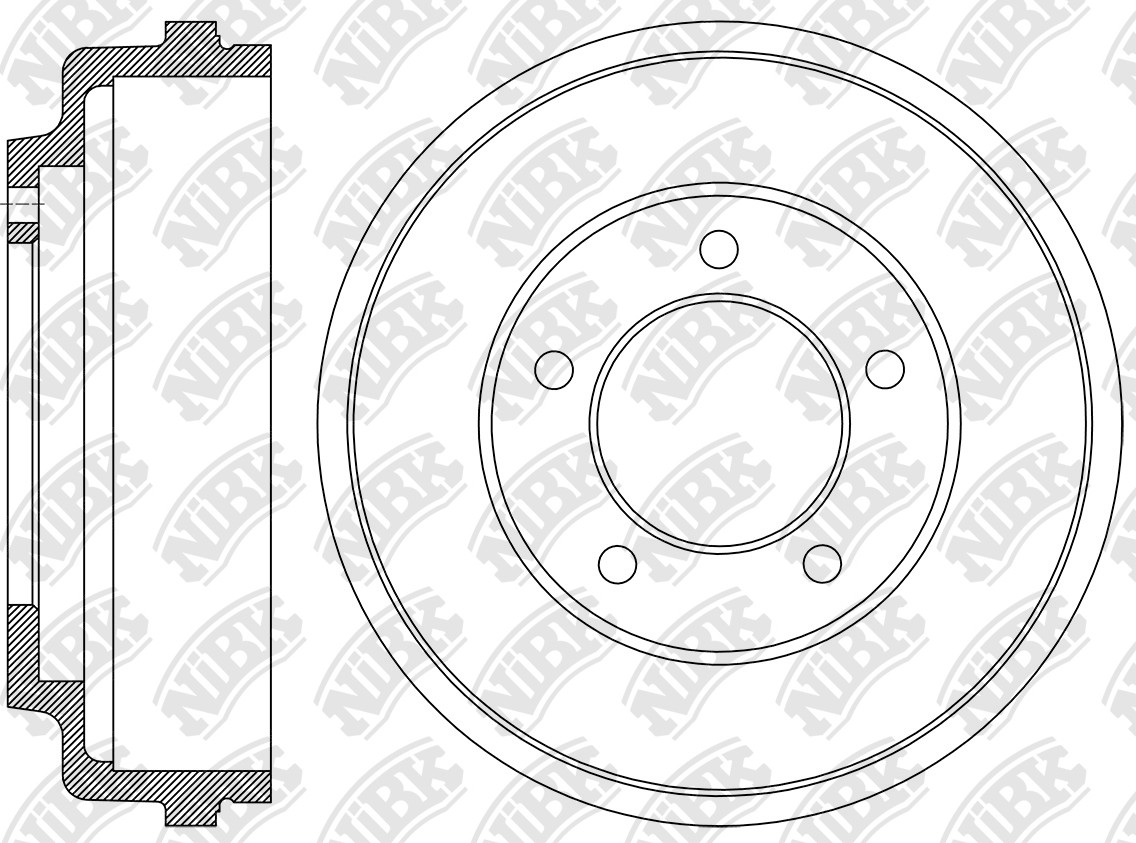

DRUM BRAKE » DN1769

DN1769

Specification

Outter Ø
314
Num. of holes
5
Hole Ø
15.6
Centering Diameter
118
Height
105
Pitch Circle Ø
160
Drum Ø
280
Structure Material
G3000

Cross Reference

FORD
4078769
FORD
4446218
FORD
YC1W-1126-DC
FORD
YC1W-1126-DD
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

FORD   »   Transit

03.00~07.06 2300 E5FA FY PN0164 DN1774DN1757DN1769 FN1271

FORD   »   Transit 330

01.00~ 2400 D2FA FY PN0164 DN1769DN1774 FN1271

FORD   »   Transit 350

01.00~12.06 2400 AI FY PN0164 DN1774DN1769 FN1271
01.00~ 2400 D2FA FY PN51162PN0164 DN1774DN1757DN1769 FN1271FN0575
01.00~ 2400 D2FE FY PN0164PN51162 DN1757DN1769DN1774 FN0575FN1271
01.00~ 2400 D4FA FY PN51162PN0164 DN1769DN1774DN1757 FN0575FN1271
01.00~ 2400 F4FA FY PN51162PN0164 DN1774DN1757DN1769 FN0575FN1271
