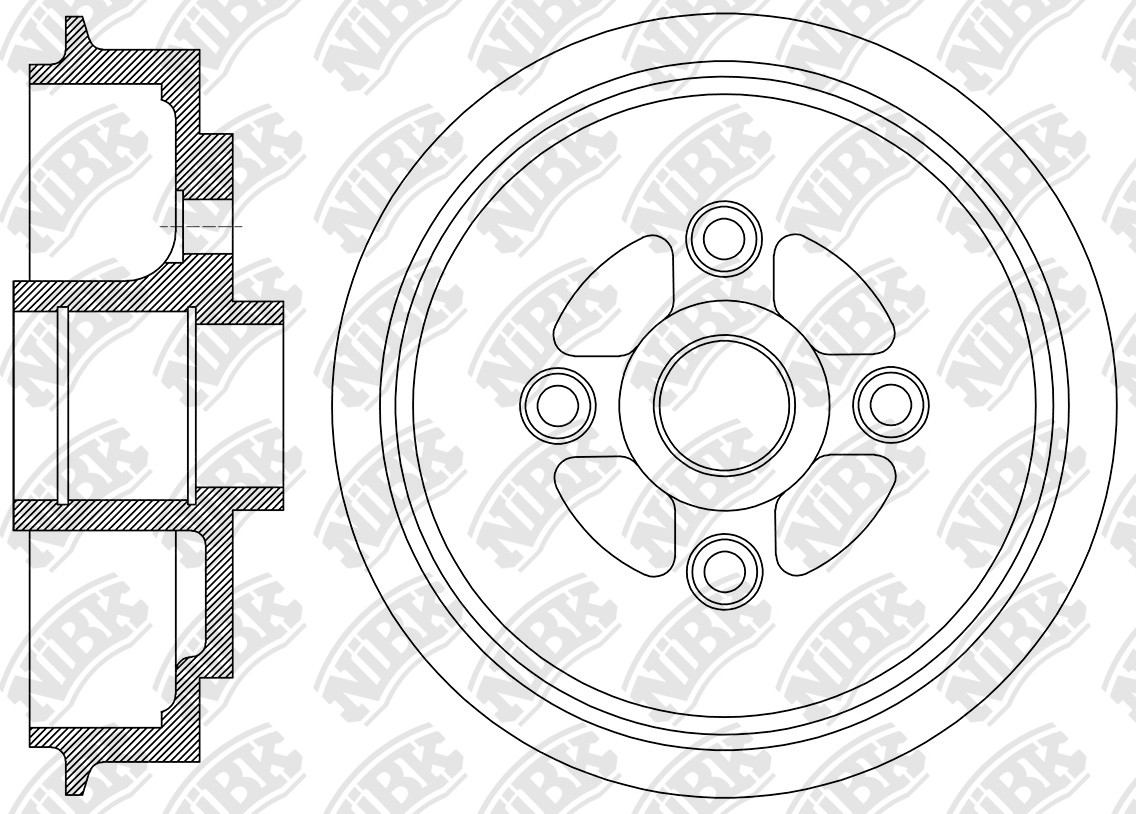

DRUM BRAKE » DN1731

DN1731

Specification

Outter Ø
215
Num. of holes
4
Hole Ø
14
Centering Diameter
45.6-51.9
Height
73.6
Pitch Circle Ø
100
Drum Ø
180
Structure Material
G3000

Cross Reference

PROTON
PW828018
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

PROTON   »   Savvy

10.05~09.11 1200 D4FA BT2 PN0370 DN1731
