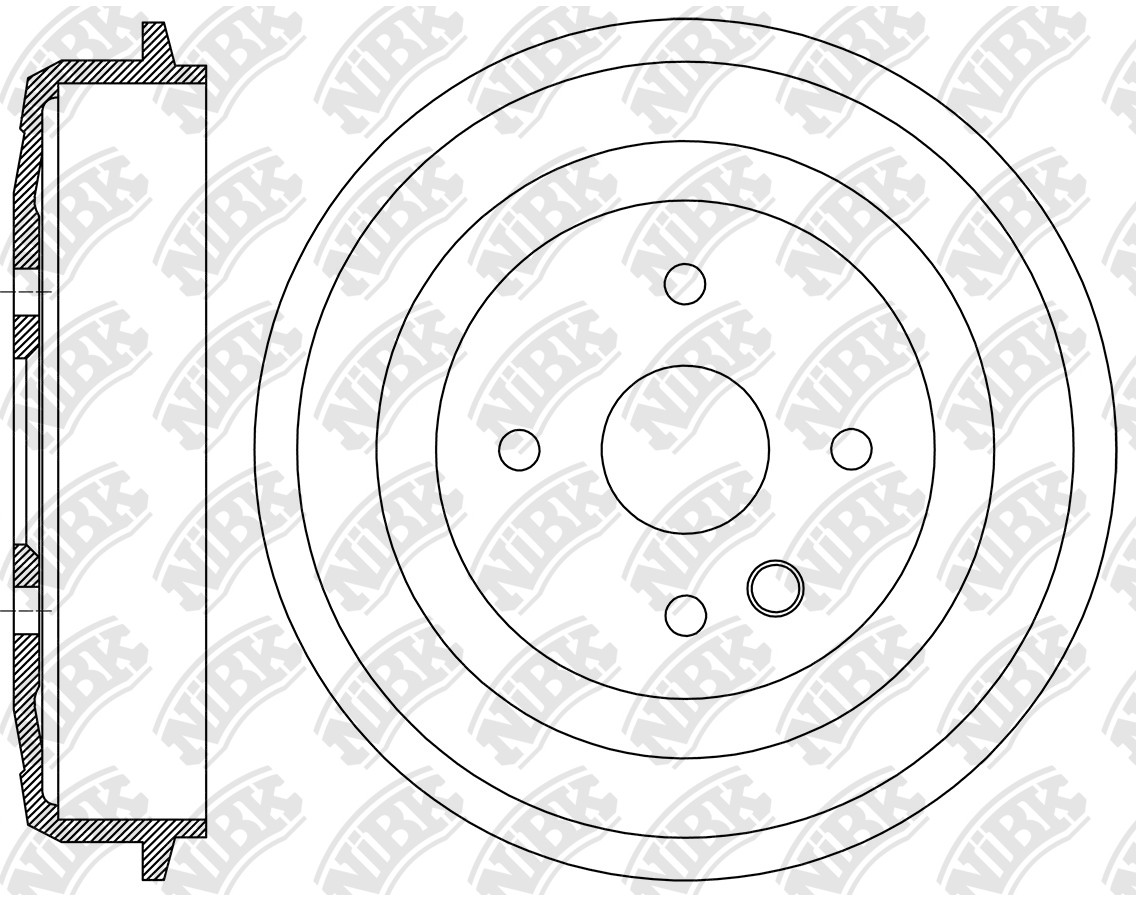

DRUM BRAKE » DN1524

DN1524

Specification

Outter Ø
270
Num. of holes
4
Hole Ø
14.6
Centering Diameter
100
Height
58.5
Pitch Circle Ø
100
Drum Ø
228.6
Structure Material
G3000

Cross Reference

BMW
34 21 1 153 091
BMW
34 21 1 156 297
BMW
34 21 1 158 556
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

BMW   »   316i

09.87~06.94 1600 M40B16 E30 RN1031V PN0009 DN1524 FN9690PN0013W FN0514

BMW   »   318i

09.87~04.91 1800 M40B18(184E1) E30 (C) PN0009 DN1524 FN9690PN0013W FN0514

BMW   »   320i

09.82~10.91 2000 M20B20 E30 RN1031V PN0009 DN1524 FN9690PN0013W
