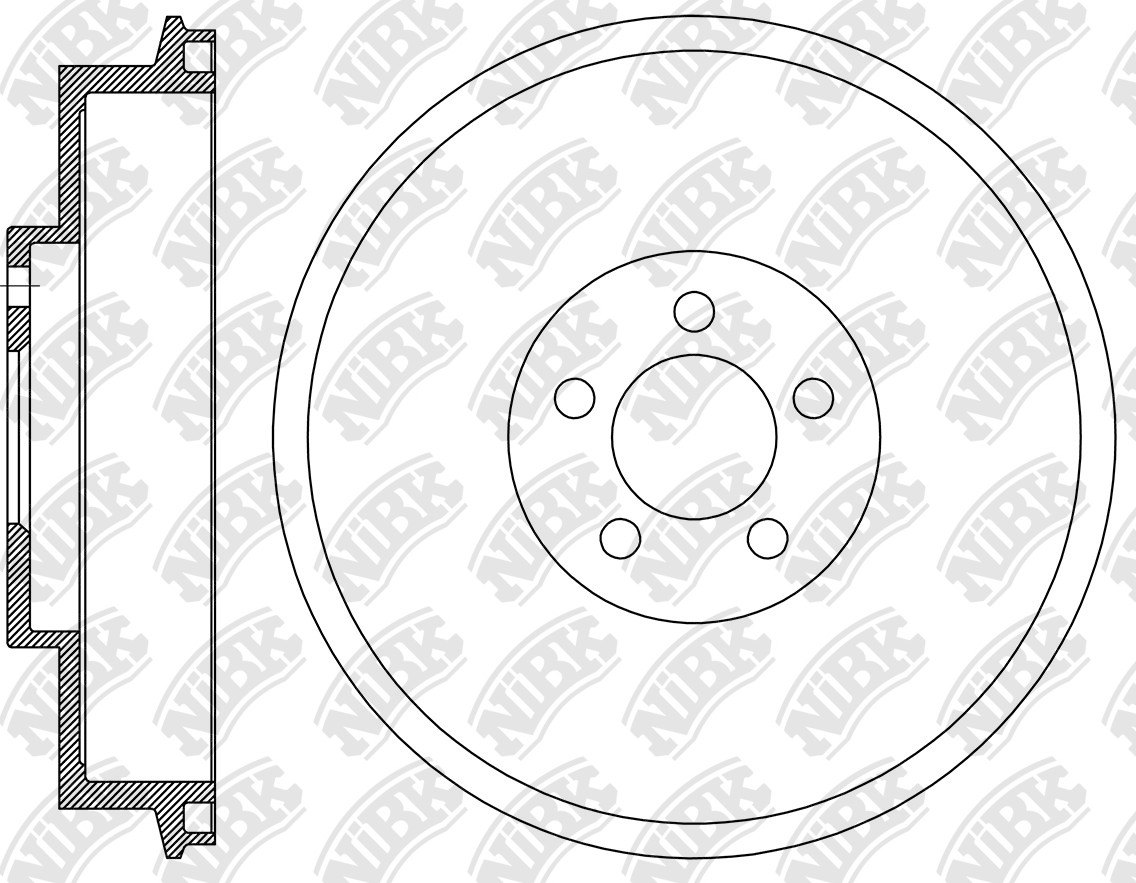

DRUM BRAKE » DN1402

Specification

Outter Ø
278
Num. of holes
5
Hole Ø
13.1
Centering Diameter
58
Height
75,9
Pitch Circle Ø
100
Drum Ø
228.6
Structure Material
G3000

Cross Reference

SUBARU
26740-FA000
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.00~06.02 2000 EJ201 SF5 JPN RN1010V PN7390 DN1402 FN7747
11.01~01.08 2000 EJ201 SG5K RHD RN1010V PN7460 DN1402 FN7747
11.01~01.08 2000 EJ201 SG5L LHD RN1010V PN7460 DN1402 FN7747 FN0569
01.00~05.02 2000 EJ202 SF5KR RHD KA RN1010V PN7390 DN1402RN1092 PN7415 FN0569
08.98~01.00 2000 EJ202 SF5LR LHD RN1010V PN7390 DN1402DN1401 FN7747
11.01~01.05 2000 EJ202 SG5 JPN RN1010V PN7460 DN1402RN1092 FN7747PN7801PN7415
11.01~01.08 2000 EJ204 SG5L LHD RN1010V PN7460 DN1402 FN7747
01.97~05.02 2000 EJ20J SF5KJ RHD RN1010V PN7390 DN1402DN1401 FN7747
02.02~09.05 2500 EJ251 SG9BL LHD RN1122V PN7460 DN1402 FN7747
11.92~08.00 1500 EJ15 GC1 PN7248PN7398 DN1402 FN7747PN7249FN7744
09.94~07.01 1500 EJ15 GF1 PN7398PN7248 DN1402 FN7744FN7747
09.96~07.00 1500 EJ15 GF2 PN7248 DN1402 FN7747FN7744
09.96~08.00 1500 EJ15# GC2 RN1276VRN1091V PN7398PN7248 DN1402 FN7744FN7747
09.94~07.00 1500 EJ15# GF1 JPN RN1276VRN1091V PN7248PN7398 DN1402 FN7747FN7744
06.03~07.07 1500 EJ152 GD2 RN1091V PN7493 DN1402 FN7747
06.03~01.08 1500 EJ152 GD3 RN1091V PN7493 DN1402 FN7747
08.00~11.02 1500 EJ152 GG2 JPN RN1091V PN7493 DN1402 FN7747
08.00~06.07 1500 EJ152 GG2 JPN RN1091V PN7493PN7460 DN1402 FN7747
06.05~01.08 1500 EJ152 GG2 JPN RN1091V PN7460PN7493 DN1402 FN7747
08.00~07.07 1500 EJ152 GG3 JPN RN1091V PN7398PN7460PN7493 DN1402 FN7747
04.06~01.08 1500 EL154 GDC JPN RN1091VRN1010V PN7460PN7493 RN1092DN1402 PN7801FN7747 FN0569
04.06~12.07 1500 EL154 GDD JPN RN1091VRN1010V PN7460PN7493 RN1092DN1402 FN7747PN7801 FN0569
08.06~12.07 1500 EL154 GDD RHD RN1091V PN7493 DN1402 FN7747
04.06~01.08 1500 EL154 GGC RN1091VRN1010V PN7460PN7493 RN1092DN1402 PN7801FN7747 FN0569
04.06~01.08 1500 EL154 GGD RN1010VRN1091V PN7493PN7460 DN1402 FN7747PN7801 FN0569
04.06~01.08 1500 EL154 GGD LHD RN1091V PN7460PN7493 DN1402 PN7801FN7747 FN0569
01.93~01.99 1600 EJ16 GC3 RN1091VRN1276V PN7248PN7398 DN1401DN1402 FN7747
04.00~01.08 1600 EJ16 GD5 RHD RN1091V PN7493 DN1402 FN7747
01.00~12.07 1600 EJ16 GG4 RN1091V PN7493PN7398 DN1402 FN7747PN7415
01.00~01.08 1600 EJ16 GG5 RN1091V PN7493PN7398 DN1402 FN7747
04.00~12.07 1600 EJ161 GD4 RN1091V PN7398PN7493 DN1402 PN7415FN7747
04.00~01.08 1600 EJ161 GD5 LHD RN1091V PN7493 DN1402 FN7747
11.92~08.00 1600 EJ16E GC4 RN1276VRN1091V PN7248 RN1092DN1402DN1401 PN7249FN7747FN7744 FN0569
01.93~07.00 1600 EJ16E GF4 RN1276VRN1091V PN7248 DN1401RN1092DN1402 FN7744PN7249FN7747 FN0569

Exemption from liability: the catalog data is advisory and can be used for reference only
