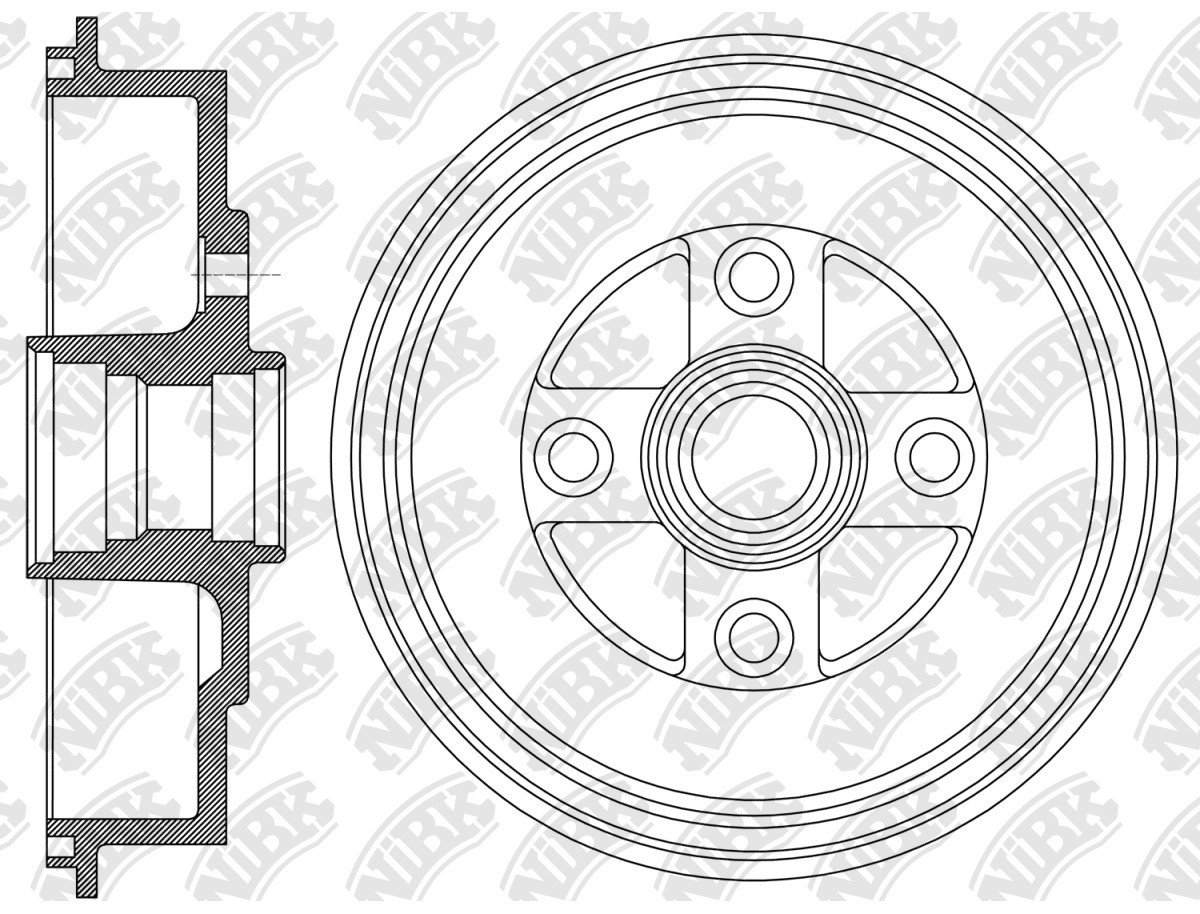

DRUM BRAKE » DN1381

Specification

Outter Ø
242
Num. of holes
4
Hole Ø
11.9
Centering Diameter
50.2-55.8
Height
66.8
Pitch Circle Ø
100
Drum Ø
200
Structure Material
G3000

Cross Reference

HONDA
42610-SA5-000
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
09.83~10.85 1800 ET1 AD# US PN8190 DN1381 FN5520

Exemption from liability: the catalog data is advisory and can be used for reference only
