NiBK Brakes:: Application Cross Reference and Image for NiBK : DRUM BRAKE : DN1350

Product
Application

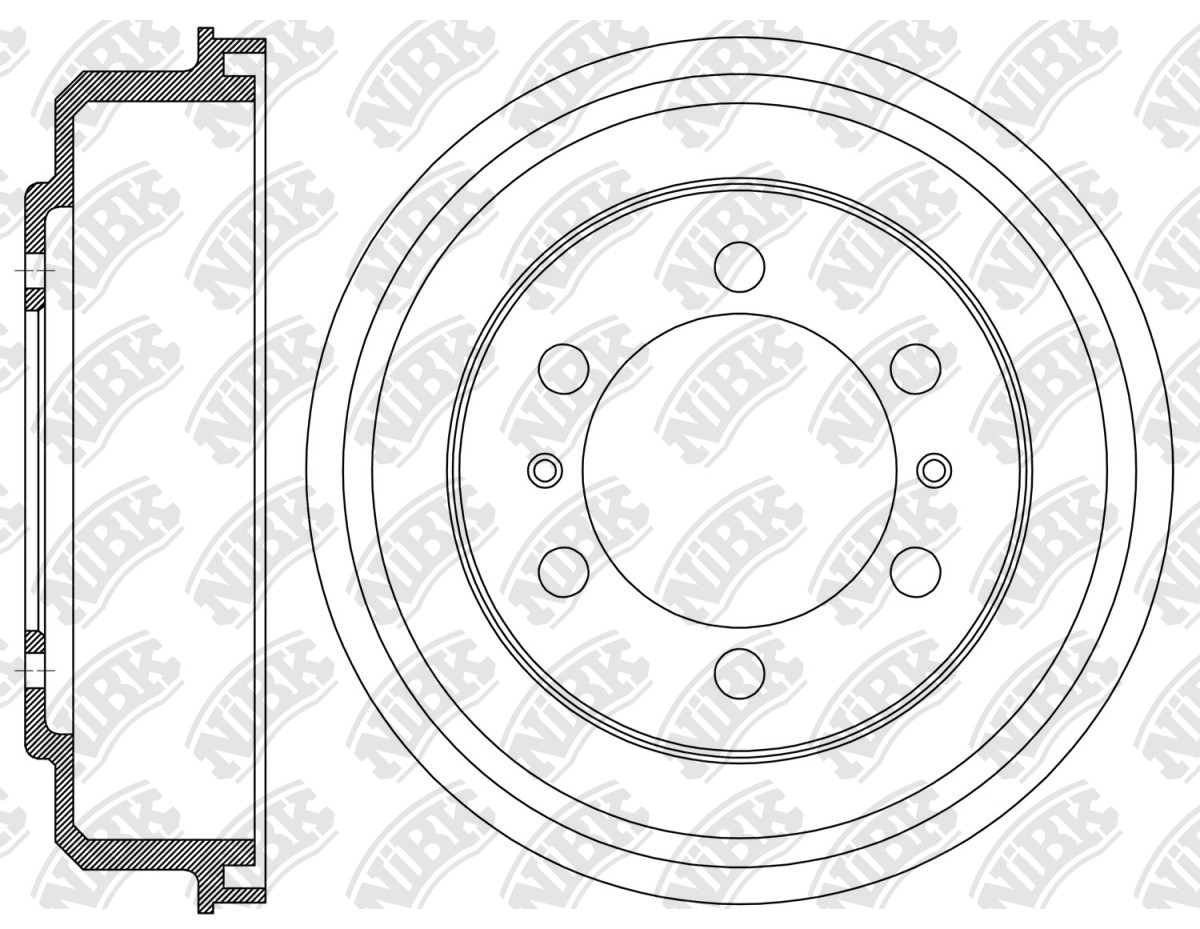

DRUM BRAKE » DN1350

Specification

Outter Ø

303

Num. of holes

6

Hole Ø

12.3

Centering Diameter

108

Height

83.1

Pitch Circle Ø

139.7

Drum Ø

254

Structure Material

G3000

Cross Reference

MITSUBISHI

MB618783

SAIC

CMB618783

years	Eng	Eng No	BodyBody	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

MITSUBISHI » Delica Truck

03.94~06.99

2500

4D56-T

P25T

RN1297V

PN3233 PN3369

DN1350

FN6715

MITSUBISHI » Pajero / Montero

01.92~12.97	2400	4G64	V11#		PN3369	DN1350
12.90~07.03	2400	4G64	V31#V GR	RN1297V	PN3369	DN1350	FN6715
12.90~06.03	2500	4D56	V14#		PN3369 PN3172	DN1350	FN6664
12.90~07.03	2500	4D56-T	V34V		PN3172	DN1350	FN6664
12.90~12.97	2600	4G54	V12#		PN3369	DN1350
12.90~07.03	2600	4G54	V32V		PN3369	DN1350
04.91~05.96	2600	4G54	V32W		PN3369	DN1350
04.91~07.03	2800	4M40	V36V	RN1297V	PN3233	DN1350	FN6715
04.91~07.03	2800	4M40	V36W			DN1350
01.92~12.97	3000	6G72	V13V			DN1350
12.90~07.03	3000	6G72	V33V			DN1350
