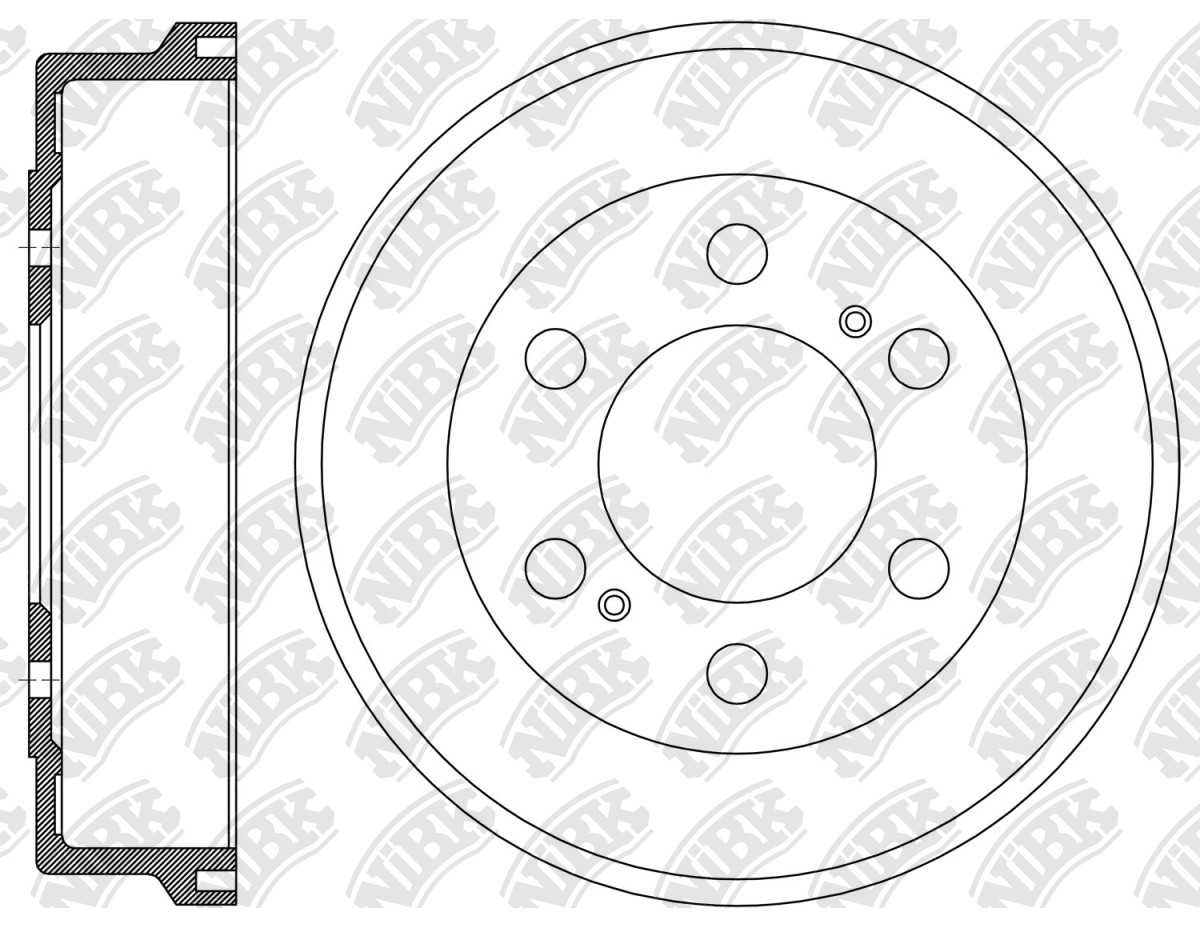

DRUM BRAKE » DN1315

Specification

Outter Ø
290
Num. of holes
6
Hole Ø
12.5
Centering Diameter
90
Height
66.5
Pitch Circle Ø
139.7
Drum Ø
254
Structure Material
G3000

Cross Reference

NISSAN
43206-T6000
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
11.86~01.92 2300 TD23 TF22 RN1357V PN1052 DN1315 FN1162
09.79~01.84 1600 J16 720 FN1168PN2075FN1151 DN1315 FN1139FN1162

Exemption from liability: the catalog data is advisory and can be used for reference only
