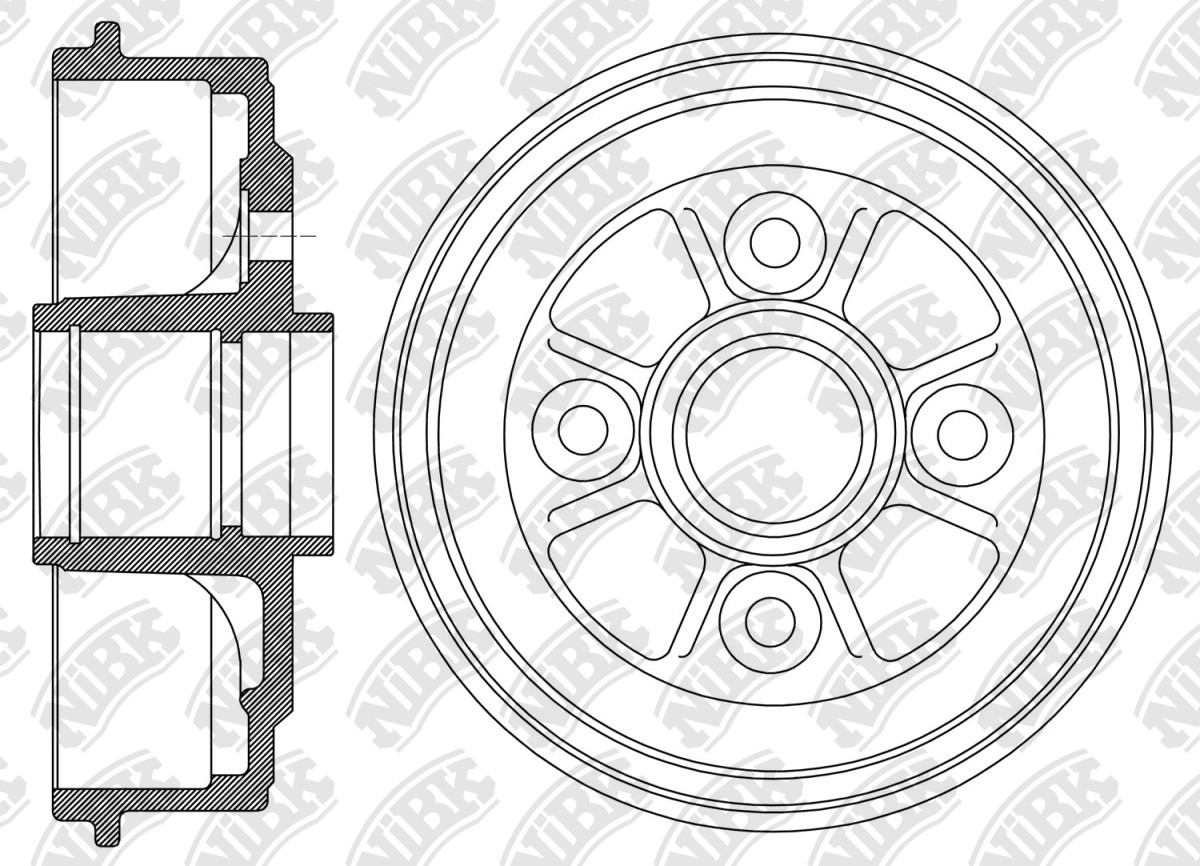

DRUM BRAKE » DN1314

DN1314

Specification

Outter Ø
208
Num. of holes
4
Hole Ø
12.5
Centering Diameter
46-52
Pitch Circle Ø
100
Drum Ø
180
Structure Material
G3000
Height
75.5

Cross Reference

NISSAN
43206-AX000
NISSAN
43206-CT40A
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

NISSAN   »   Cube

10.02~11.08 1400 CR14DE BZ11 RN22004V PN2452 DN1314 FN1261
05.05~11.08 1500 HR15DE YZ11 RN22004V PN2452 DN1314 FN1261

NISSAN   »   March

02.02~10.03 1000 CR10DE K12 JPN RN22004V PN2452 DN1314 FN1261
02.02~07.10 1200 CR12DE AK12 RN22004VRN22003V PN2452 DN1314 FN1261
02.02~06.07 1400 CR14DE BK12 RN22004V PN2452 DN1314 FN1261
02.02~08.10 1400 CR14DE K12 RN1187VRN22004V PN2452PN2800 DN1314 FN1261FN1255
08.05~07.10 1500 HR15DE YK12 RN22004V PN2452 DN1314 FN1261

NISSAN   »   Note

01.05~09.12 1500 HR15DE E11 RN22004V PN2452 DN1314 FN1261
