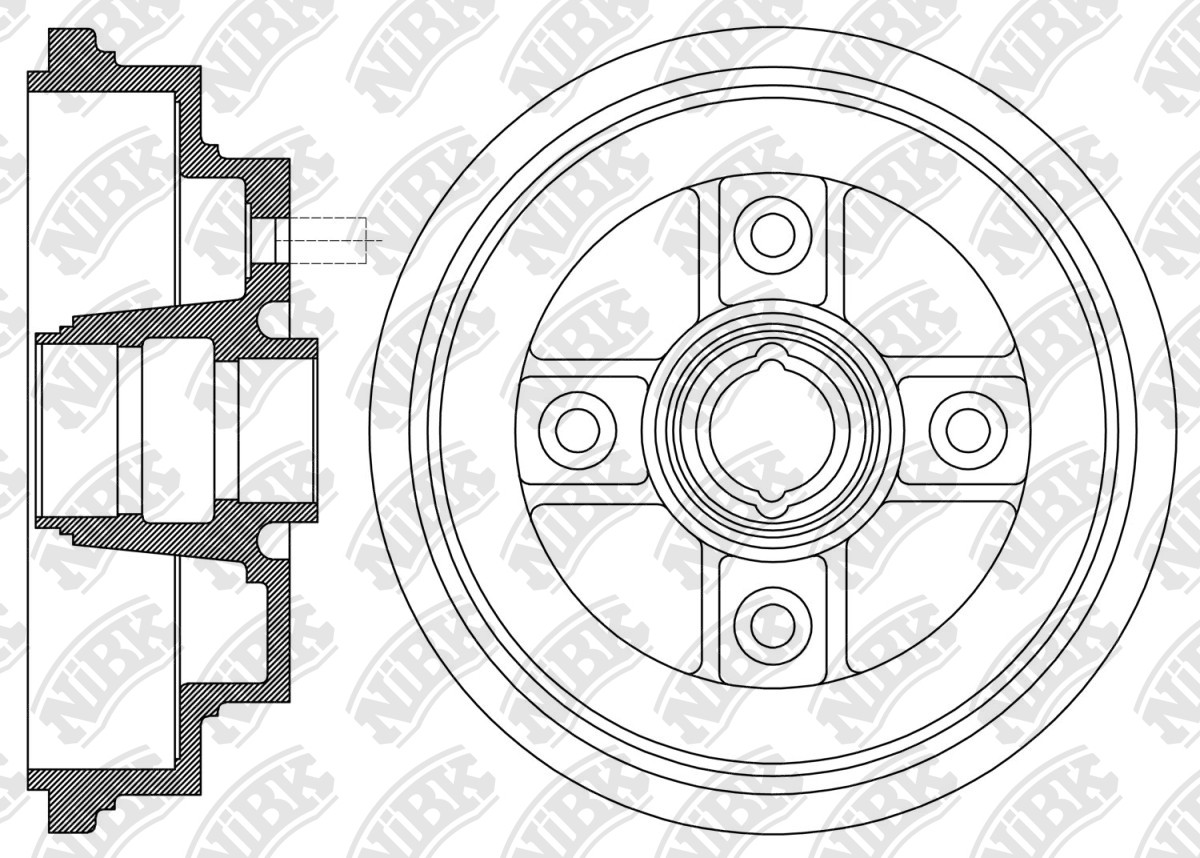

DRUM BRAKE » DN1300

Specification

Outter Ø
240
Num. of holes
4
Hole Ø
12.55
Centering Diameter
45.1-53.9
Height
85.9
Pitch Circle Ø
114.3
Drum Ø
203.4
Structure Material
G3000

Cross Reference

NISSAN
43202-D0101
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
06.81~09.87 1600 CA16S FKT11 PN2104 DN1300 FN1149
06.81~09.87 1600 CA16S T11 PN2104 DN1300 FN1149
06.81~09.87 1800 CA18# FPT11 PN2104 DN1300 FN1149
06.81~09.87 1800 CA18# PT11 PN2104 DN1300 FN1149

Exemption from liability: the catalog data is advisory and can be used for reference only
