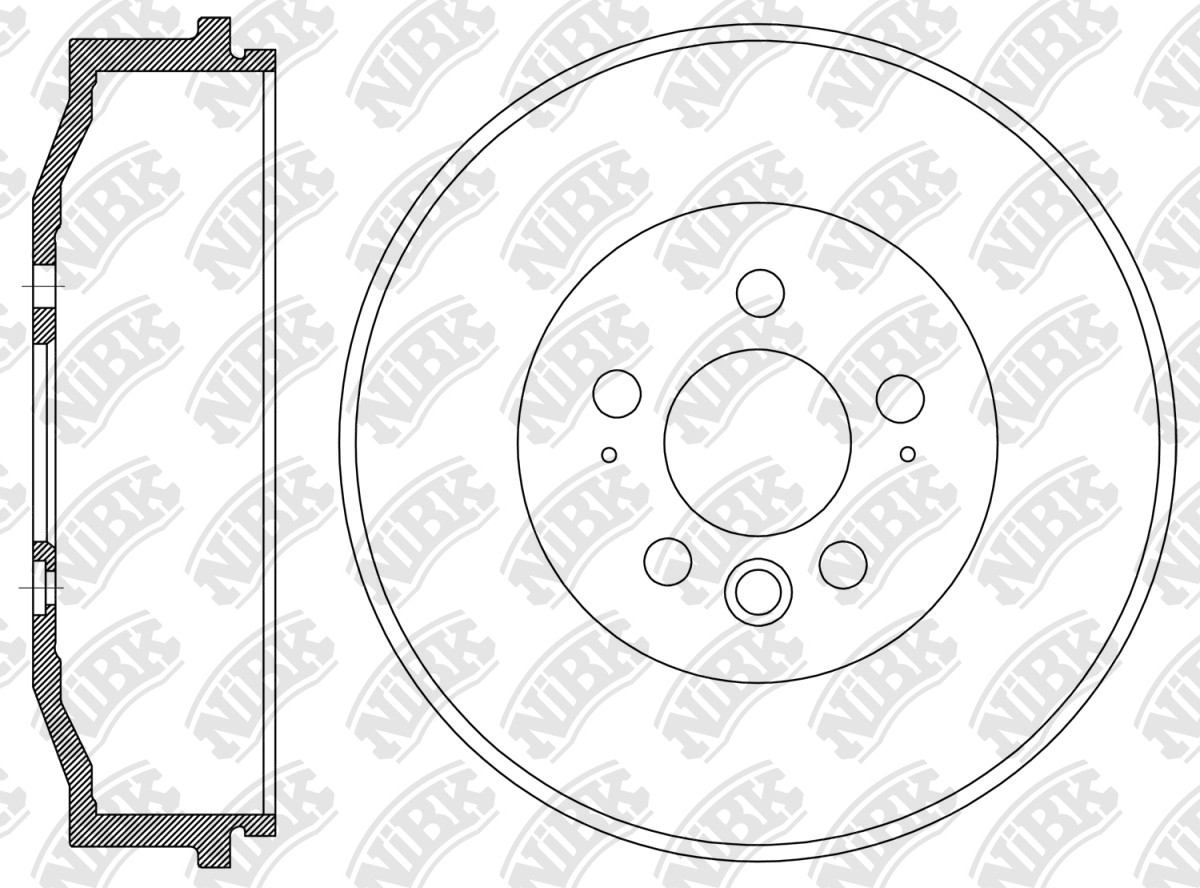

DRUM BRAKE » DN1105

DN1105

Specification

Outter Ø
335
Hole Ø
16.6
Centering Diameter
76
Height
95.5
Pitch Circle Ø
120
Drum Ø
294.5
Structure Material
G3000
Num. of holes
5

Cross Reference

VAG
2H0 609 617
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

VOLKSWAGEN   »   Amarok

09.10~08.12 2000 CDBA 2H__1_ RN1511V PN0444W DN1105 FN33001
11.09~08.12 2000 CDCA 2H__2_ RN1511V PN0444W DN1105 FN33001
12.10~10.16 2000 CFPA 2H__B3 RN1511V PN0444W DN1105 FN33001
11.11~10.16 2000 CNEA 2H__3_ RN1511V PN0444W DN1105 FN33001
05.12~10.16 2000 CNFB 2H__4_ RN1511V PN0444W DN1105 FN33001
06.16~05.22 2000 CNFB S_B_4_ RN1511V PN0444W DN1105 FN33001
09.16~01.20 2000 CSHA 2HA RN1511V PN0444W DN1105 FN33001
11.11~10.16 2000 CSHA 2H__3_ RN1511V PN0444W DN1105 FN33001
06.16~06.20 3000 DDXA S_B_5_ RN1511V PN0444W DN1105 FN33001
06.16~08.20 3000 DDXB S_B_6_ RN1511V PN0444WPN0737 DN1105RN2198V FN33001PN0867
