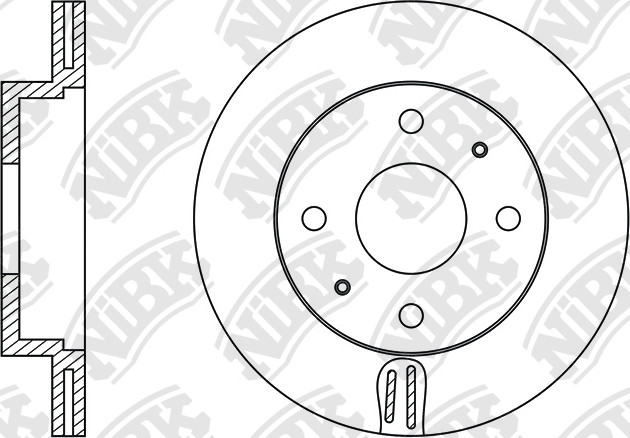

ROTOR DISC » RN1378V
Specification
Type
Vented
Disc Thickness (Max)
18
Num. of holes
4
Height
45
Centering Diameter
61
Front/Rear
Front
Pitch Circle Ø
100
Outter Ø
240
Disc Thickness (Min)
16
Structure Material
G3000
Drum Ø:
130
Cross Reference
BENDIX
561486B
NISSAN
40206-60Y00
NISSAN
40206-60Y01
NISSAN
4020658A00
NISSAN
4020658A01
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 10.90~07.95 | 1400 | GA14D# | N14 | RN1378V | PN2226 | RN1096DN1312 | FN1170PN2283FN1185 | |
| 01.90~12.94 | 1500 | GA15DS | B13 | RN1816RN1378V | PN2226 | DN1312RN1096 | FN1170PN2283FN1185 | |
| 01.90~12.93 | 1500 | GA15DS | FNB13 | RN1378V | PN2226 | PN2283FN1170 | ||
| 08.86~11.89 | 1600 | CA16DE | EB12 | RN1378V | PN2367 | PN2283 | ||
| 10.90~07.95 | 1600 | GA16D# | N14 | RN1378V | PN2226 | DN1312RN1096 | FN1185FN1170PN2283 | |
| 01.90~12.94 | 1600 | GA16DE | B13 | RN1378V | PN2226 | PN2283FN1185 | ||
| 01.90~12.93 | 1600 | GA16DE | EB13 | RN1378V | PN2226 | RN1096 | PN2283FN1185 | |
| 01.90~12.94 | 1600 | GA16DS | B13 | RN1378V | PN2226 | RN1096DN1312 | FN1185PN2283 | |
| 10.88~09.90 | 1600 | GA16S | N13 | RN1378V | PN2367 | FN1170 | ||
| 01.90~12.94 | 1700 | CD17 | B13 | RN1816RN1378V | PN2226 | DN1312RN1096 | FN1170PN2283FN1185 |
| 05.97~05.99 | 1300 | GA13DE | VY10 | RN1378V | PN2225 | DN1312 | FN1198FN1185 | |
| 10.90~06.95 | 1500 | GA15D# | VFNY10 | RN1378V | PN2225 | FN1170 | ||
| 10.90~05.99 | 1500 | GA15D# | VFY10 | RN1816RN1378V | PN2226PN2225 | DN1312 | FN1185FN1198 | |
| 04.92~06.96 | 1500 | GA15D# | WFGY10 | RN1816RN1378V | PN2225PN2226 | FN1198FN1170 | ||
| 10.90~06.96 | 1500 | GA15D# | WFNY10 | RN1378V | PN2225 | FN1198FN1170 | ||
| 10.90~06.96 | 1500 | GA15D# | WFY10 | RN1816RN1378V | PN2226PN2225 | DN1312 | FN1185FN1198 | |
| 10.90~06.97 | 1700 | CD17 | VSNY10 | RN1378V | PN2225 | FN1170 | ||
| 10.90~06.97 | 1700 | CD17 | VSY10 | RN1816RN1378V | PN2226PN2225 | DN1312 | FN1170FN1198FN1185 | |
| 05.97~05.99 | 2000 | CD20 | VENY10 | RN1378V | PN2225 | FN1170FN1198 | ||
| 05.97~06.99 | 2000 | CD20 | VEY10 | RN1378V | PN2225 | FN1198FN1170 | ||
| 08.93~06.96 | 2000 | CD20 | WEY10 | RN1816RN1378V | PN2226PN2225 | DN1312 | FN1185FN1198 |
