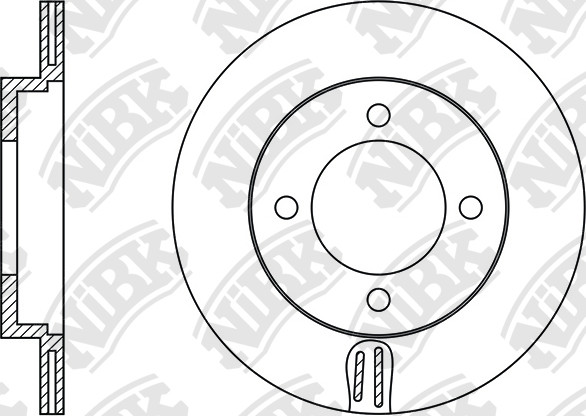

ROTOR DISC » RN1339V

Specification

Type
Vented
Disc Thickness (Max)
12.8
Num. of holes
4
Height
34.4
Centering Diameter
74
Front/Rear
Front
Outter Ø
228
Structure Material
G3000

Cross Reference

TOYOTA
43512-20040
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
02.82~07.87 1800 1C CE71V RN1339V PN1067PN1081 FN2313
05.83~12.87 1800 1C-L CE80 RN1339V PN1077 PN1321FN2311

Exemption from liability: the catalog data is advisory and can be used for reference only
