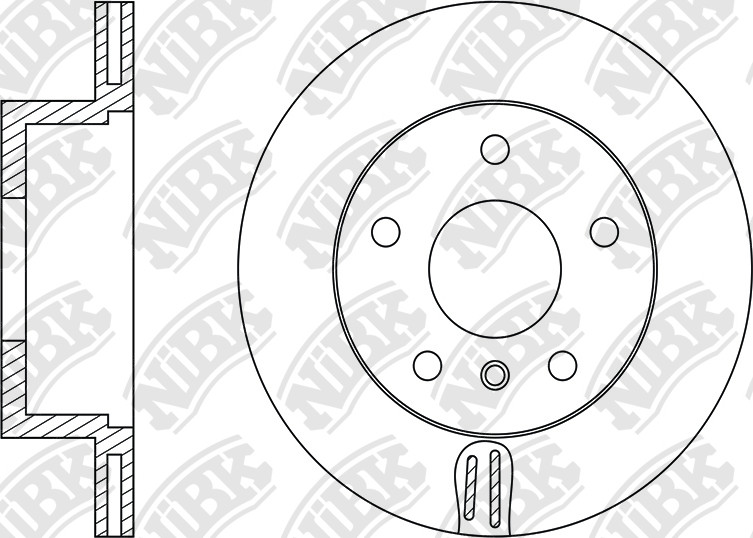

ROTOR DISC » RN1291V

Specification

Type
Vented
Disc Thickness (Max)
22
Num. of holes
5
Height
76
Centering Diameter
79
Front/Rear
Front
Pitch Circle Ø
120
Outter Ø
296
Drum Ø:
143
Disc Thickness (Min)
20.4
Structure Material
G3000

Cross Reference

BENDIX
562035B
BENDIX EUR
562035B
BMW
34 11 6 767 061
BMW
34111163013
BMW
34111163081
BMW
34111164839
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
09.99~05.03 2000 M47204D1 E39 RN1291V PN0027 RN1078VRN32002 PN0028 FN0560
09.99~05.04 2000 M47204D1 E39 (2) RN1291V PN0401PN0027 PN0028 FN0560
11.95~07.00 2000 M52206S3 E39 RN1291V PN0027 RN32002RN1078V PN0028 FN0560
02.97~07.00 2000 M52206S4 E39 (2) RN1291V PN0027 RN1078V PN0028 FN0560
03.95~06.03 2000 M52B20 E39 RN1291V PN0027 RN32002RN1078V PN0028 FN0560
01.96~06.03 2000 M52B20 E39 RN1291V PN0027 RN32002RN1078V PN0028 FN0560
09.00~07.03 2200 M54226S1 E39 RN1291V PN0027PN0401 RN32002RN1078V PN0028 FN0560
09.00~12.03 2200 M54226S1 E39 RN1291V PN0401PN0027 RN1078VRN32002 PN0028 FN0560
11.95~07.00 2500 M52256S4 E39 RN1291V PN0027 RN32002RN1078V PN0028 FN0560
02.95~08.00 2500 M52B25 E39 RN1291V PN0027 RN1078VRN32002 PN0028 FN0560
01.97~04.00 2500 M51D25 E39 RN1291V PN0027 RN32002RN1078V PN0028 FN0560
01.96~04.00 2500 M51D25 E39 RN1291V PN0027 RN32002RN1078V PN0028 FN0560
02.00~07.04 2500 M57D25 E39 RN1291V PN0027 RN1078V PN0028 FN0560
09.00~07.03 2500 M54256S5 E39 RN1291V PN0027 RN1078V PN0028 FN0560
11.90~05.00 2500 M51D25 E39 RN1291V PN0027 RN32002RN1078V PN0028 FN0560
11.95~05.03 2500 M57256D1 E39 RN1291V PN0027 RN32002RN1078V PN0028 FN0560
02.95~07.00 2800 M52 E39 RN1291V PN0027 RN1078V PN0028 FN0560
11.95~07.00 2800 M52286S2 E39 RN1291V PN0027 RN1078V PN0028 FN0560
02.97~07.00 2800 M52286S2 E39 (2) RN1291V PN0027 RN1078V PN0028 FN0560
11.95~09.00 2800 M52B28 E39 RN1291V PN0027 RN1078V PN0028 FN0560
05.98~08.00 3000 M57306D1 E39 RN1291V PN0027PN0401 RN1078V PN0028 FN0560
07.06~ 2500 D5254T6 RN1291V PN0462W RN1771 PN0461

Exemption from liability: the catalog data is advisory and can be used for reference only
