ROTOR DISC » RN1040

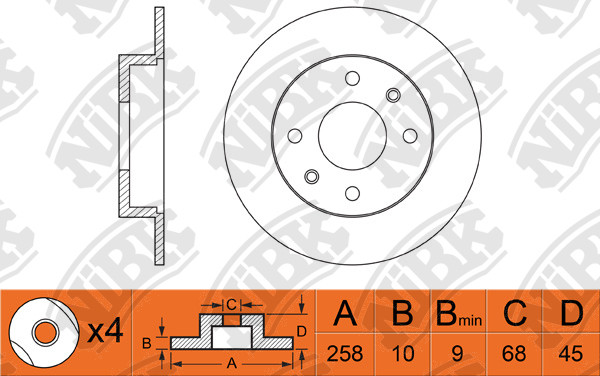

Specification

Type
Solid
Disc Thickness (Max)
10
Num. of holes
4
Height
45
Centering Diameter
68
Front/Rear
Rear
Pitch Circle Ø
114.3
Outter Ø
258
Drum Ø:
154
Structure Material
G3000

Cross Reference

BENDIX
561615B
BENDIX
562032B
NISSAN
43206-99J01
NISSAN
4320699J00
NISSAN
532065M311
OEM
4320659J01
OEM
432065M311
OEM
4320699B01
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
10.02~11.06 1500 K9K N16E RN1146VRN1039V PN2180PN2230 RN1040DN1313 PN2214FN1247
04.00~03.01 1500 QG15DE N16 RN1146VRN1039V PN2180PN2230 RN1040DN1313 PN2214FN1247
02.00~11.06 1500 QG15DE N16E RN1146VRN1039V PN2180PN2230 RN1040DN1313 PN2214FN1247
04.00~03.01 1800 QG18DE N16 RN1146V PN2230 RN1040 PN2224
02.00~11.06 1800 QG18DE N16E RN1146V PN2230 RN1040 PN2214
04.00~03.01 2200 YD22DDT N16 RN1146V PN2230 RN1040 PN2224
02.00~11.06 2200 YD22DDT N16E 5HB RN1146V PN2230 RN1040 PN2214
05.93~06.96 1600 GA16DE P10E RN1039V PN2180 RN1040 PN2214FN1221
06.99~12.02 1800 QG18DE P11E RN1146V PN2230 RN1040DN1313 PN2214FN1247
01.91~06.96 2000 CD20 P10E RN1039V PN2180 RN1040 PN2214
06.96~01.02 2000 CD20-T P11E RN1146VRN1039V PN2230PN2180 DN1313RN1040 PN2214FN1230
07.90~01.98 2000 CD20 W10 RN1039V PN2176 DN1297RN1040 FN1170PN2224
07.90~01.98 2000 SR20D# W10 RN1039V PN2176 RN1040RN1817 PN2224

Exemption from liability: the catalog data is advisory and can be used for reference only
