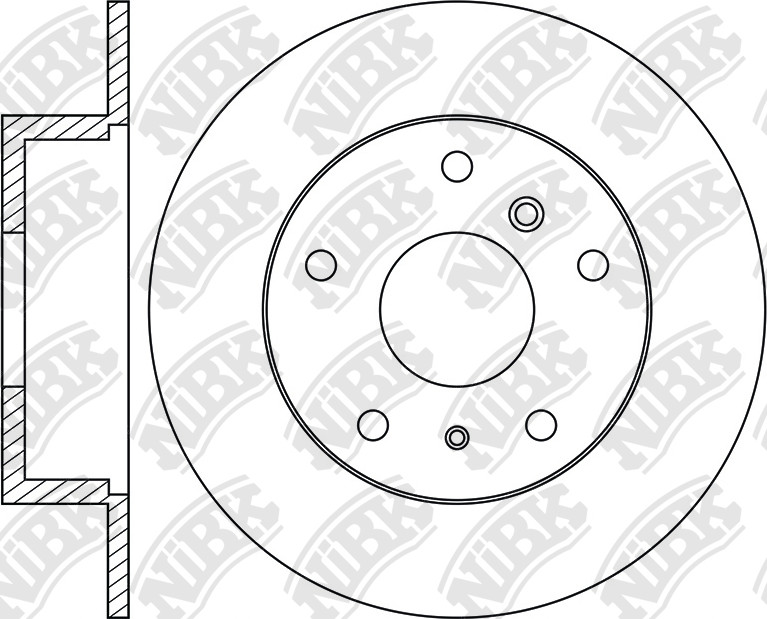

ROTOR DISC » RN1034

Specification

Type
Solid
Disc Thickness (Max)
10
Num. of holes
5
Height
61.5
Centering Diameter
75
Front/Rear
Rear
Pitch Circle Ø
120
Outter Ø
300
Disc Thickness (Min)
7.5
Drum Ø:
180

Cross Reference

BENDIX
561477B
BMW
34211156668
BMW
34211162305
BMW
34216756537
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
09.89~04.94 1800 M40B18(184E1) E34 RN1032 PN0012W RN1034 PN0014 FN0527
05.94~07.96 1800 M43B18(184E2) E34 RN1032 PN0012W RN1034 PN0014 FN0527
06.87~09.90 2000 M20B20 E34 RN1032RN1033V PN0012W RN1034 PN0014 FN0527
01.90~05.97 2000 M50206S2 E34 (2) RN1033V PN0012W RN1034 PN0014 FN0527
04.90~07.96 2000 M50B20(206S2) E34 RN1032RN1033V PN0012W RN1034 PN0014 FN0527
03.88~08.91 2400 M21D24 E34 RN1032 PN0012W RN1034 PN0014 FN0527
06.90~07.96 2500 M52B25 E34 PN0012W RN1034 PN0014 FN0527
03.93~07.96 2500 M51D25 E34 RN1032 PN0012W RN1034 PN0014 FN0527
09.91~07.96 2500 M51D25 E34 RN1032 PN0012W RN1034 PN0014 FN0527
02.88~02.90 2500 M20B25 E34 RN1033V PN0012W RN1034 PN0014 FN0527
03.90~07.96 2500 M50B25 E34 RN1033V PN0012W RN1034 PN0014 FN0527
01.88~04.90 3000 M30306KA E34 RN1033V PN0012W RN1034 PN0014 FN0527
09.92~07.96 3000 M60B30 E34 RN1033V PN0012W RN1034 PN0014 FN0527
09.88~12.93 3500 M30B35 E34 RN1033V PN0012W RN1034 PN0014 FN0527
09.92~07.96 4000 M60B40(408S1) E34 PN0012W RN1034RN1078V PN0014 FN0527

Exemption from liability: the catalog data is advisory and can be used for reference only
